UCLAMP6514P.TNT

Active

Semtech Corporation

65V, 4-LINE ESD PROTECTION, SGP2510P8

Search across all available documentation for this part.

Active

Semtech Corporation

65V, 4-LINE ESD PROTECTION, SGP2510P8

Technical Specifications

Parameters and characteristics for this part

Specification	UCLAMP6514P.TNT

Applications	General Purpose
Bidirectional Channels [custom]	4
Capacitance @ Frequency	10.5 pF

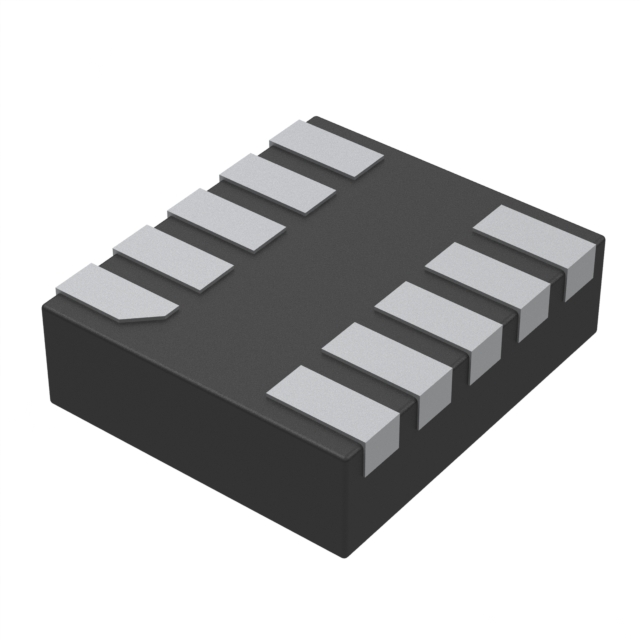

Package / Case	10-UFDFN
Power - Peak Pulse	240 W
Voltage - Breakdown (Min) [Min]	65 V
Voltage - Clamping (Max) @ Ipp [Max]	120 V
Voltage - Reverse Standoff (Typ) [Max]	60 V

65V, 4-LINE ESD PROTECTION, SGP2510P8

Part	Package / Case	Voltage - Reverse Standoff (Typ) [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Bidirectional Channels [custom]	Applications	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Power - Peak Pulse
Semtech Corporation UCLAMP6514P.TNT	10-UFDFN	60 V	120 V	4	General Purpose	65 V	10.5 pF	240 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120V Clamp Ipp Tvs Diode

Technical documentation and resources

No documents available
