826852-3

Active

TE Connectivity AMP Connectors

CONN HDR 10POS 0.25 TIN PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HDR 10POS 0.25 TIN PCB

Technical Specifications

Parameters and characteristics for this part

CONN HDR 10POS 0.25 TIN PCB

Part	Fastening Type	Contact Material	Insulation Height	Insulation Height	Contact Shape	Number of Rows	Mounting Type	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Number of Positions	Contact Length - Post	Contact Length - Post	Style	Contact Type	Contact Finish - Post
TE Connectivity AMP Connectors 826852-3	Locking Ramp	Copper Alloy	14.75 mm	0.581 in	Circular	1	Through Hole	Header	All	6.35 mm	0.25 in	Natural	Solder	10	0.146 in	3.7 mm	Board to Cable/Wire	Female Socket	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

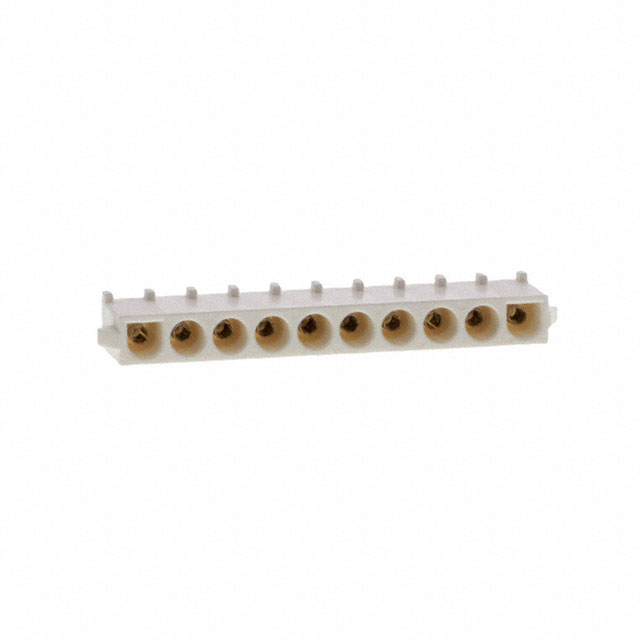

10 Position Header Connector 0.250" (6.35mm) Through Hole Tin
