PFRA.185.2

Active

SCHURTER Inc.

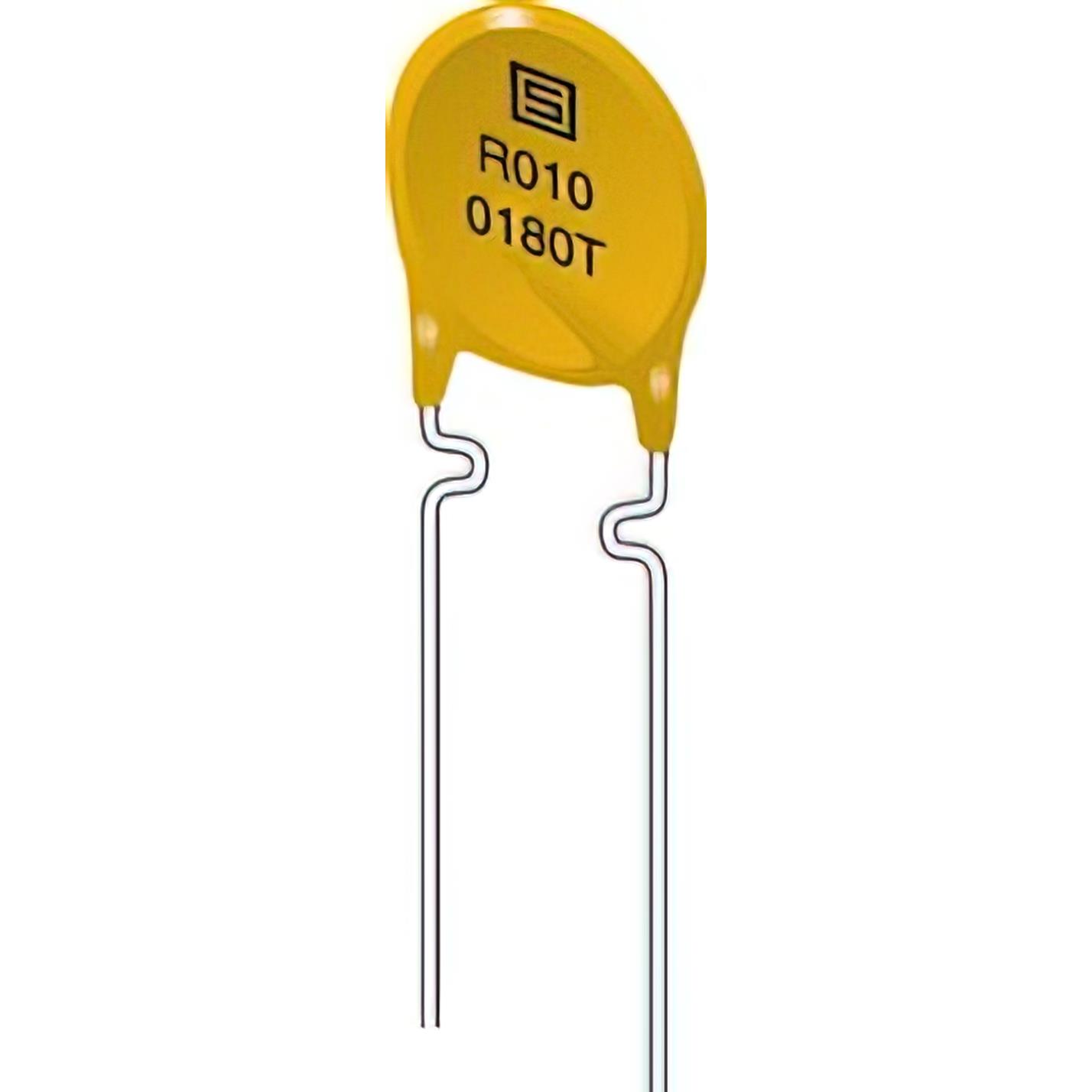

PTC RESET FUSE 30V 1.85A RADIAL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PTC RESET FUSE 30V 1.85A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PFRA.185.2

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	1.85 A
Current - Max [Max]	40 A
Current - Trip (It)	3.7 A
Height - Seated (Max) [Max]	18.4 mm
Height - Seated (Max) [Max]	0.724 in
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	40 mOhms
Resistance - Post Trip (R1) (Max) [Max]	110 mOhms
Size / Dimension [custom]	0.118 "
Size / Dimension [custom]	3 mm
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Time to Trip	8.7 s
Type	Polymeric
Voltage - Max [Max]	30 V

PTC RESET FUSE 30V 1.85A RADIAL

Part	Package / Case	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Current - Max [Max]	Time to Trip	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Hold (Ih) (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [custom]	Current - Trip (It)	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Approval Agency
SCHURTER Inc. PFRA.185.2	Disc, Radial	110 mOhms	Through Hole	40 A	8.7 s	18.4 mm	0.724 in	40 mOhms	85 °C	-40 °C	Polymeric	1.85 A	12 mm	0.472 in	0.118 "	3 mm	3.7 A	5.1 mm	0.201 in	30 V	cURus, TUV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Polymeric PTC Resettable Fuse 30V 1.85 A Ih Through Hole Radial, Disc
