Description
General part information

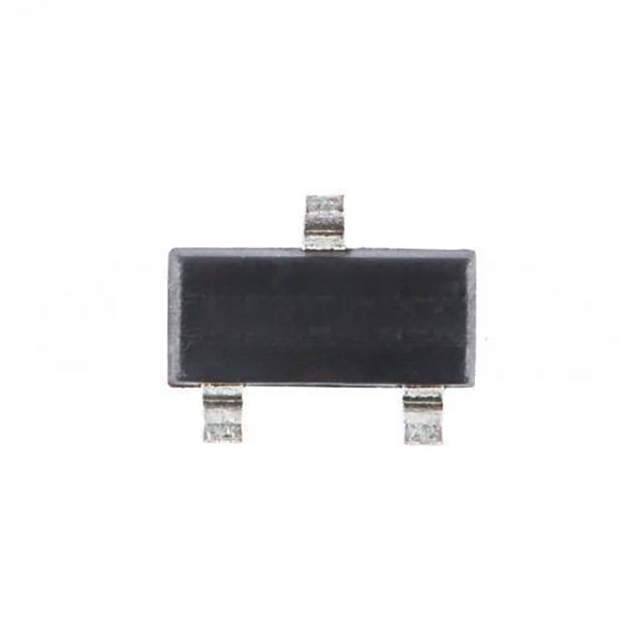

XC6206P362MR
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
Technical Specifications
Parameters and characteristics for this part
| Specification | XC6206P362MR |
|---|---|
| Control Features | Current Limit |
| Current - Output | 100 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package / Case | TO-236-3, SOT-23-3, SC-59 |
| Package Name | SOT-23 |
| Protection Features | Short Circuit, Over Current |
| PSRR | 40 dB |
| Voltage - Input (Max) | 8 V |
| Voltage - Output (Min/Fixed) | 3.6 V |
| Voltage Dropout (Max) | 0.2 V |
