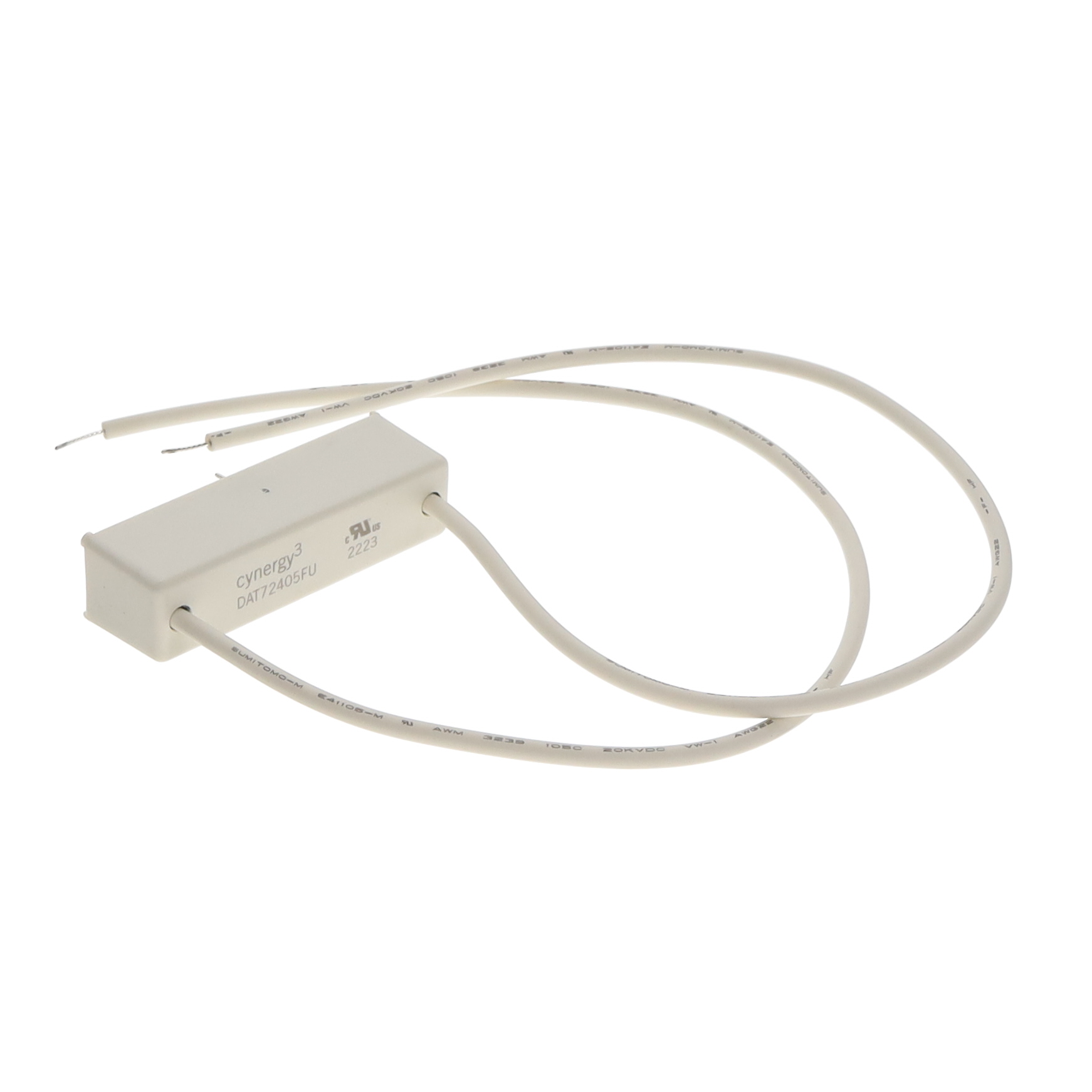

DAT72405FU

Active

Sensata Technologies

RELAY REED SPST-NO 5KV 24V

Search across all available documentation for this part.

Active

Sensata Technologies

RELAY REED SPST-NO 5KV 24V

Technical Specifications

Parameters and characteristics for this part

RELAY REED SPST-NO 5KV 24V

Part	Contact Rating (Current)	Switching Voltage	Contact Form	Release Time	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Termination Style	Coil Type	Coil Current	Mounting Type	Operate Time	Must Operate Voltage	Coil Resistance	Must Release Voltage
Sensata Technologies DAT72405FU	2 A	3500 VAC, 3500 VDC	SPST-NO (1 Form A)	2 ms	Tungsten (W)	-20 C	70 °C	24 VDC	PC Pin, Wire Leads	Non Latching	30.8 mA	Through Hole	3 ms	20 VDC	780 Ohms	4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPST-NO 5KV 24V

Technical documentation and resources

No documents available
