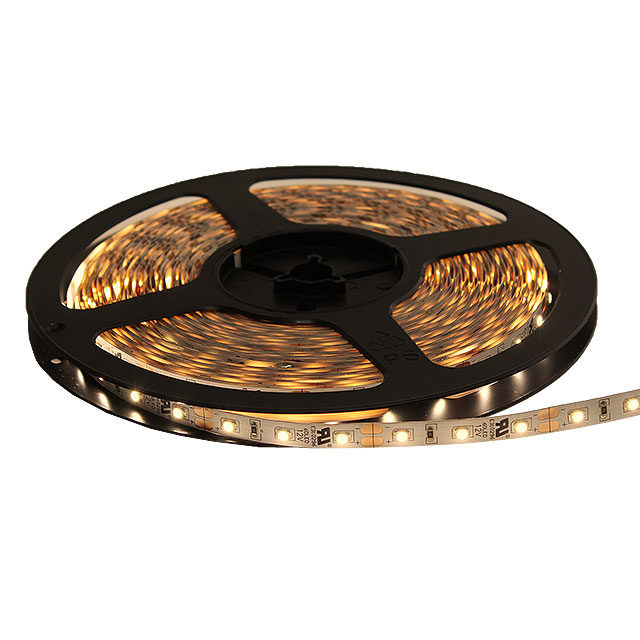

12V-SB-WW-12M

Active

Inspired LED, LLC

LED ENG WRM WHT 3000K 12M REEL

Search across all available documentation for this part.

Active

Inspired LED, LLC

LED ENG WRM WHT 3000K 12M REEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12V-SB-WW-12M	12V-SB Series

CCT (K)	-	4200 - 6000 K
Color	White, Warm	Red, Green, Blue, White, Warm, Neutral, Cool
Configuration	Linear Light Strip, Flexible	Linear Light Strip, Flexible
CRI (Color Rendering Index)	92	92 - 94
Height [z]	1.5 mm	1.5 - 2.29 mm
Lens Type	Flat	Flat
Luminous Flux @ Current/Temperature	-	95 - 100 lm
Size / Dimension	46.99mm L per Segment	46.99mm L per Segment
Size / Dimension [x]	12000 mm	114.3 - 12000 mm
Size / Dimension [y]	8 mm	8 - 10 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	12 V	12 V
Wavelength	-	565 nm

LED ENG RGB LINEAR STRIP 5M REEL

Part	Voltage - Forward (Vf) (Typ)	Type	Configuration	Color	Lens Type	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Viewing Angle	CRI (Color Rendering Index)	Size / Dimension	Luminous Flux @ Current/Temperature	CCT (K)	Wavelength
Inspired LED, LLC 12V-SB-RGB-5M	12 V	LED Engine	Flexible, Linear Light Strip	Blue, Green, Red	Flat	114.3 mm, 12000 mm	10 mm	2.29 mm
Inspired LED, LLC 12V-SB-WW-12M	12 V	LED Engine	Flexible, Linear Light Strip	Warm, White	Flat	12000 mm	8 mm	1.5 mm	120 °	92	46.99mm L per Segment
Inspired LED, LLC 12V-SB-PW-12M	12 V	LED Engine	Flexible, Linear Light Strip	Neutral, White	Flat	12000 mm	8 mm	1.5 mm	120 °	94	46.99mm L per Segment	95 lm	4200 K
Inspired LED, LLC 12V-SB-GRN-12M	12 V	LED Engine	Flexible, Linear Light Strip	Green	Flat	12000 mm	8 mm	1.5 mm	120 °		46.99mm L per Segment			565 nm
Inspired LED, LLC 12V-SB-CW-12M	12 V	LED Engine	Flexible, Linear Light Strip	Cool, White	Flat	12000 mm	8 mm	1.5 mm	120 °	92	46.99mm L per Segment	100 lm	6000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Engine - White, Warm Linear Light Strip, Flexible
