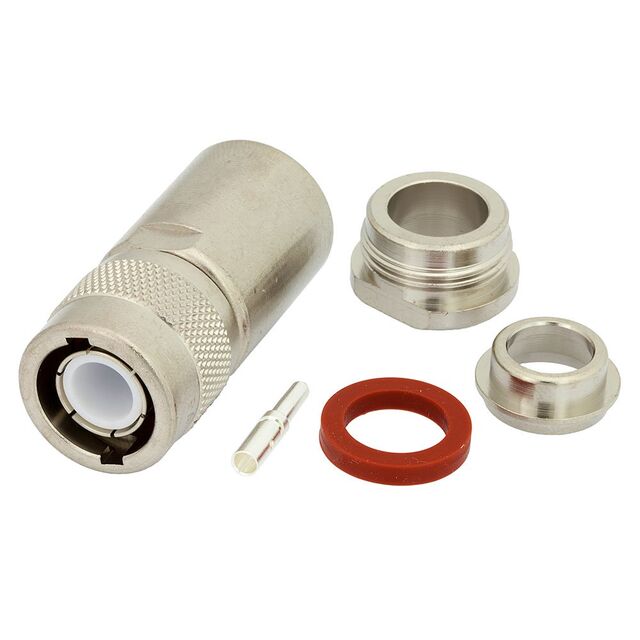

FMCN45903
ActiveFairview Microwave
CONN PLUG CLAMP/SOLDER TYPE C
FMCN45903
ActiveFairview Microwave
CONN PLUG CLAMP/SOLDER TYPE C
Description
General part information
FMCN45903
C Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN45903 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 216, 225, 144, 214, 215, RG-8, 213, 393, 11, 9 |
| Center Contact Plating | Silver |
| Connector Style | C Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
