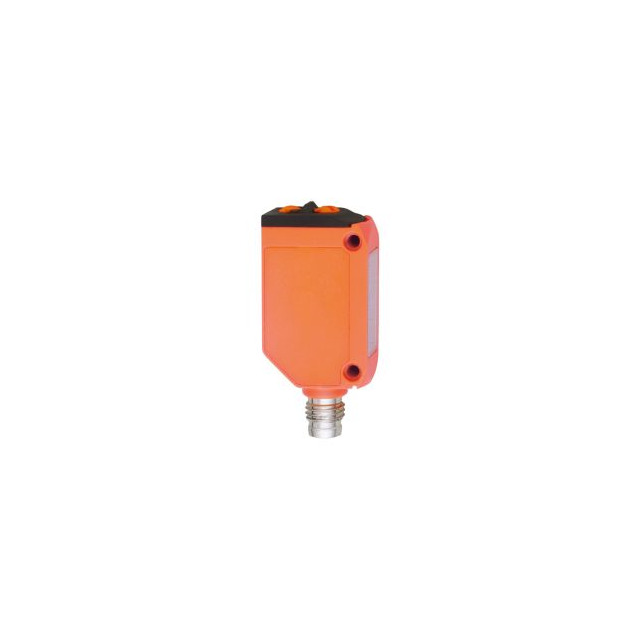

DIFFUSE REFLECTION SENSOR; RED L
O6T203
Activeifm efector, inc.
DIFFUSE REFLECTION SENSOR; RED L
Description
General part information
O6T203
Reflective, Diffuse Optical Sensor 0.197" ~ 19.685" (5mm ~ 500mm) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | O6T203 |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | M8, Connector |
| Current - DC Forward (If) (Max) | 100 mA |
| Ingress Protection | IP65, IP67 |
| Light Source | Red LED |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Output Type | Transistor |
| Package / Case | Module |
| Sensing Distance Maximum | 19.685 ", 19.685 " |
| Sensing Distance Minimum | 0.197 ", 0.197 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
