630-015-640-532

Active

EDAC Inc.

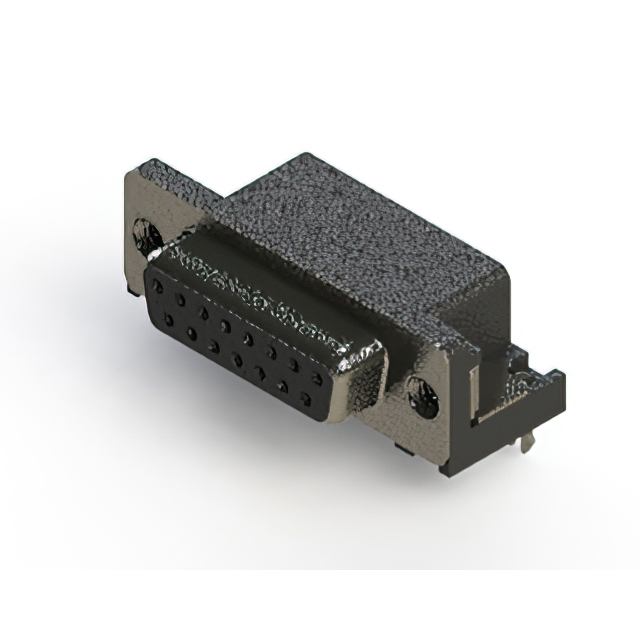

CONN D-SUB RCPT 15POS R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-015-640-532

Active

EDAC Inc.

CONN D-SUB RCPT 15POS R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-015-640-532

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

630-015 Series

Part	Contact Finish	Dielectric Material	Backset Spacing	Backset Spacing	Contact Finish Thickness	Flange Feature	Material Flammability Rating	Connector Style	Termination	Shell Size, Connector Layout	Number of Rows	Contact Type	Features	Connector Type	Contact Material	Color	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Material, Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-015-240-015	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Housing/Shell (M3)	UL94 V-0	D-Sub	Solder	2	2	Signal	Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole
EDAC Inc. 630-015-340-012	Gold	Polyester Thermoplastic	0.409 in	10.4 mm		Housing/Shell (4-40)	UL94 V-0	D-Sub	Solder	2	2	Signal	Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole	15 µin	0.38 µm
EDAC Inc. 630-015-640-531	Gold	Polyester Thermoplastic	0.409 in	10.4 mm		Housing/Shell (Unthreaded)	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	125 °C	-55 °C	15	Nickel Plated Steel	Through Hole Right Angle	30 Áin	0.76 Ám
EDAC Inc. 630-015-640-045	Gold	Polyester Thermoplastic	0.409 in	10.4 mm		Housing/Shell (M3)	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole	30 Áin	0.76 Ám
EDAC Inc. 630-015-240-012	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Housing/Shell (4-40)	UL94 V-0	D-Sub	Solder	2	2	Signal	Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole
EDAC Inc. 630-015-240-543	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Female Screwlock (4-40) Mating Side	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	125 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole
EDAC Inc. 630-015-240-035	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Housing/Shell (M3)	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 630-015-240-032	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Housing/Shell (4-40)	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Through Hole Right Angle
EDAC Inc. 630-015-240-011	Gold	Polyester Thermoplastic	0.409 in	10.4 mm	Flash	Housing/Shell (Unthreaded)	UL94 V-0	D-Sub	Solder	2	2	Signal	Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	85 °C	-55 °C	15	Nickel Plated Steel	Board Edge Right Angle Through Hole
EDAC Inc. 630-015-640-532	Gold	Polyester Thermoplastic	0.409 in	10.4 mm		Housing/Shell (4-40)	UL94 V-0	D-Sub	Solder	2	2	Signal	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Copper Alloy	Black	3 A	125 °C	-55 °C	15	Nickel Plated Steel	Through Hole Right Angle	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.51

Description

General part information

630-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector
