ESM020W-0350-42

Active

ERP Power, LLC

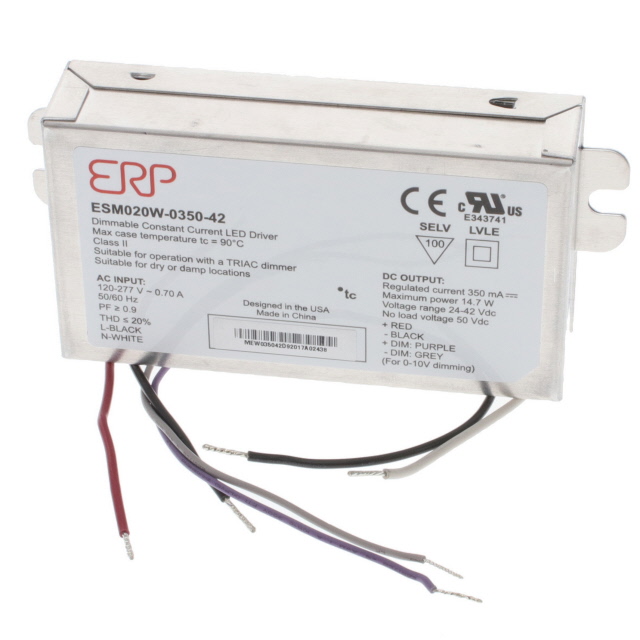

LED DRIVER CC AC/DC 28-42V 350MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESM020W-0350-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 350MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 29.84
		5	$ 28.27
		10	$ 26.70
		25	$ 25.52
		50	$ 24.34
		100	$ 23.56
		250	$ 21.60

Description

General part information

ESM020W Series

350mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESM020W-0350-42	ESM020W Series

Approval Agency	CB, cUL, FC, UL, CE, cRUcs	CB, cUL, FC, UL, CE, cRUcs
Current - Output (Max) [Max]	350 mA	1 - 440 A
Dimming	ELV, TRIAC	ELV, TRIAC, Analog
Efficiency	87 %	87 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature	-	194 °F
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	15 W	11 - 17 Watts
Ratings	NEMA 410, IP20	IP64, NEMA 410, IP20
Size / Dimension	-	4.19 "
Size / Dimension	-	2.37 in
Size / Dimension	-	0.99 "
Size / Dimension [x]	106.7 mm, 4.2 in	4.2 - 106.7 mm
Size / Dimension [y]	60.3 mm, 2.37 in	2.37 - 60.3 mm
Size / Dimension [z]	0.99 in, 25.2 mm	0.99 - 25.2 in
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	42 V	14 - 42 V
Voltage - Output [Min]	28 V	8 - 28 V
Weight	252 g	252 g
Weight	0.556 lb	0.556 lb

ESM020W Series

LED DRIVER CC AC/DC 8-14V 1A

Part	Weight	Weight	Topology	Current - Output (Max) [Max]	Termination Style	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Ratings	Type	Power (Watts)	Features	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature
ERP Power, LLC ESM020W-1000-14	252 g	0.556 lb	AC DC Converter	1 A	Wire Leads	87 %	-30 ░C	90 °C	120 VAC	14 V	8 V	Chassis Mount	IP20, IP64, NEMA 410	Constant Current	14 Watts	OCP, OTP, SCP	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	277 VAC	1	CB, CE, cRUcs, cUL, FC, UL
ERP Power, LLC ESM020W-0440-34	252 g	0.556 lb	AC DC Converter	440 mA	Wire Leads	87 %	-30 ░C	90 °C	120 VAC	34 V	19 V	Chassis Mount	IP20, NEMA 410	Constant Current	15 W	OCP, OTP, SCP	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	277 VAC	1	CB, CE, cRUcs, cUL, FC, UL
ERP Power, LLC ESM020W-0280-42	252 g	0.556 lb	AC DC Converter	280 mA	Wire Leads	87 %	-30 ░C	90 °C	120 VAC	42 V	28 V	Chassis Mount	IP20, NEMA 410	Constant Current	12 W	OCP, OTP, SCP	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	277 VAC	1	CB, CE, cRUcs, cUL, FC, UL
ERP Power, LLC ESM020W-0400-42			AC DC Converter	440 mA	Wire Leads	87 %			120 VAC	42 V	28 V	Chassis Mount	IP20	Constant Current	17 W	OCP, OTP, SCP	ELV, TRIAC	25.1 mm	106.4 mm	60.2 mm	277 VAC	1	CB, CE, cRUcs, FC	4.19 "	2.37 in	0.99 "
ERP Power, LLC ESM020W-0350-42	252 g	0.556 lb	AC DC Converter	350 mA	Wire Leads	87 %	-30 ░C	90 °C	120 VAC	42 V	28 V	Chassis Mount	IP20, NEMA 410	Constant Current	15 W	OCP, OTP, SCP	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	277 VAC	1	CB, CE, cRUcs, cUL, FC, UL
ERP Power, LLC ESM020W-0350-42-Z1			AC DC Converter	350 mA	Wire Leads	87 %			120 VAC	42 V	24 V	Chassis Mount	IP20	Constant Current	15 W	OCP, OTP, SCP	Analog, ELV, TRIAC	25.1 mm	106.4 mm	60.2 mm	277 VAC	1		4.19 "	2.37 in	0.99 "	194 °F
ERP Power, LLC ESM020W-0440-25	252 g	0.556 lb	AC DC Converter	440 mA	Wire Leads	87 %	-30 ░C	90 °C	120 VAC	25 V	19 V	Chassis Mount	IP20, IP64, NEMA 410	Constant Current	11 W	OCP, OTP, SCP	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	277 VAC	1	CB, CE, cRUcs, cUL, FC, UL
