DC0019/01-TG-A486G-0.3-2A

t-Global Technology

THERM PAD 25.4MMX25.4MM W/ADH

Search across all available documentation for this part.

t-Global Technology

THERM PAD 25.4MMX25.4MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

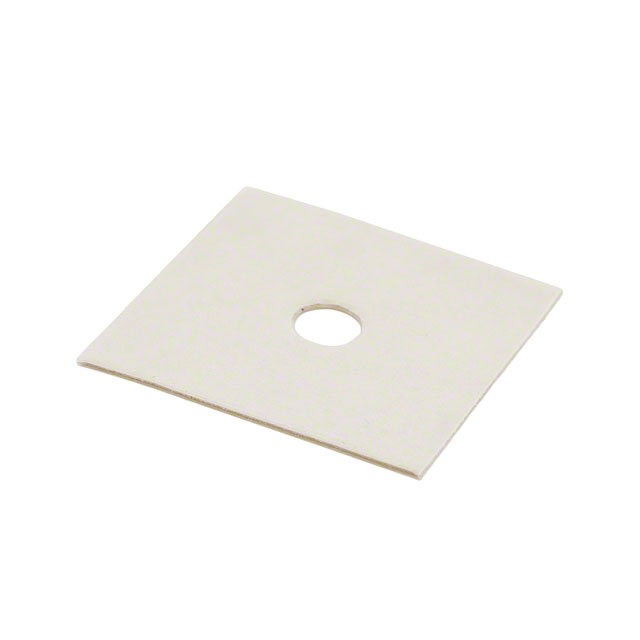

Thermal Pad Gray 25.40mm x 25.40mm Square Adhesive - Both Sides

Technical documentation and resources

Part	Shelf Life Start	Shelf Life	Thickness	Thickness	Color	Outline [x]	Outline [y]	Shape	Type	Usage	Material	Thermal Conductivity	Adhesive	Thickness [custom]	Thickness [custom]	Backing, Carrier	Thickness [x]	Thickness [x]
t-Global Technology DC0019/01-TG-A482K-0.1-0	Date of Purchase	24 Months	0.1 mm	0.0039 in	Red	25.4 mm	25.4 mm	Square	Die-Cut Pad, Sheet	Rectifier	Silicone	2.3 W/m-K
t-Global Technology DC0019/01-TG-A373F-0.25-2A		12 Months			Yellow	25.4 mm	25.4 mm	Square	Die-Cut Pad, Sheet	Rectifier		1.4 W/m-K	Adhesive - Both Sides	0.254 mm	0.01 in
t-Global Technology DC0019/01-TI900-0.12-2A		24 Months			White	25.4 mm	25.4 mm	Square	Die-Cut Pad, Sheet	Rectifier	Silicone	1.8 W/m-K	Adhesive - Both Sides			Viscose	0.005 in	0.127 mm
t-Global Technology DC0019/01-TG-A486G-0.3-2A	Date of Purchase	12 Months			Gray	25.4 mm	25.4 mm	Square	Die-Cut Pad, Sheet	Rectifier		6 W/m-K	Adhesive - Both Sides	0.305 mm	0.012 "
