TMCM-1270-CABLE
ActiveAnalog Devices Inc./Maxim Integrated

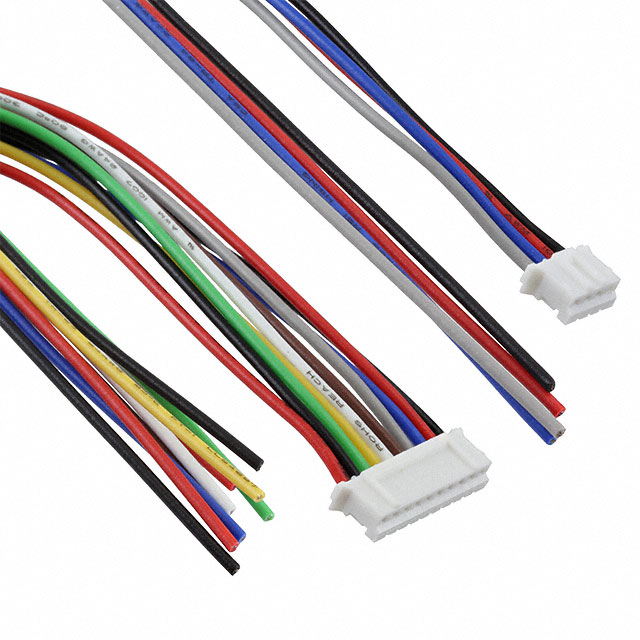

CABLE LOOM FOR TMCM-1270
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMCM-1270-CABLE
ActiveAnalog Devices Inc./Maxim Integrated
CABLE LOOM FOR TMCM-1270
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMCM-1270-CABLE | TMCM-1270 Series |
|---|---|---|
| Accessory Type | Cable Assembly | Cable Assembly |
| Control / Drive Type | - | Bipolar, Stepper |
| Current - Output | - | 1.2 A |
| For Use With/Related Products | TMCM-1270 Series | TMCM-1270 Series |
| Interface | - | CAN |
| Motor Type | - | Stepper |
| Mounting Type | - | Chassis Mount |
| Operating Temperature | - | -30 ░C |
| Operating Temperature | - | 40 °C |
| Type | - | Module |
| Usage | Motor | Motor |
| Voltage - Supply | - | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.90 | |
TMCM-1270 Series
STEPPER DRIVER 1.2A
| Part | Current - Output | Interface | Motor Type | Mounting Type | Type | Voltage - Supply | Control / Drive Type | Operating Temperature [Min] | Operating Temperature [Max] | For Use With/Related Products | Accessory Type | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMCM-1270-TMCL | 1.2 A | CAN | Stepper | Chassis Mount | Module | 24 VDC | Bipolar, Stepper | -30 ░C | 40 °C | |||
Analog Devices Inc./Maxim Integrated TMCM-1270-CABLE | TMCM-1270 Series | Cable Assembly | Motor | |||||||||
Analog Devices Inc./Maxim Integrated TMCM-1270-CANOPEN | 1.2 A | CAN | Stepper | Chassis Mount | Module | 24 VDC | Bipolar, Stepper | -30 ░C | 40 °C |
Description
General part information
TMCM-1270 Series
Cable Assembly
