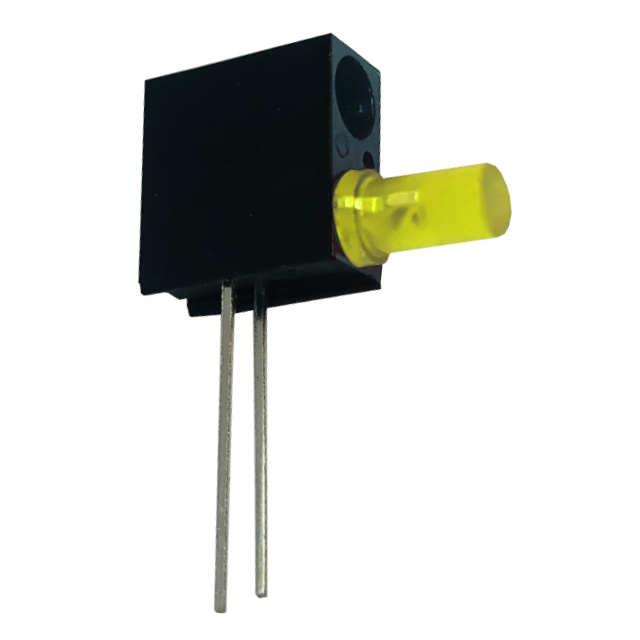

L3640YD-H3062
ActiveAmerican Opto Plus LED
LED CBI 3MM YELLOW THROUGH HOLE
L3640YD-H3062
ActiveAmerican Opto Plus LED
LED CBI 3MM YELLOW THROUGH HOLE
Description
General part information
L3640YD-H3062
LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused 2.1V 20mA Amber, 20mA Green Round with Domed Top 3mm, T-1 Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | L3640YD-H3062 |
|---|---|
| Color | Yellow |
| Configuration | Single |
| Current (Amber) | 20 mA |
| Current (Green) | 20 mA |
| Current Colors | Amber, Green |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 3 mcd |
| Mounting Type | Through Hole |
| Viewing Angle | 180 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 590 nm |
