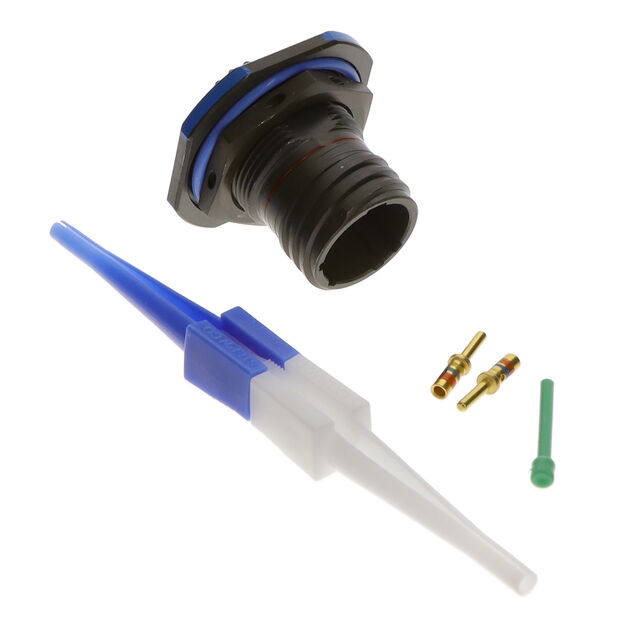

D38999/20FC98HE
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/20FC98HE
ActiveCorsair
D38999 SER III RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | D38999/20FC98HE | D38999/20FC Series |
|---|---|---|
| Applications | Aerospace, Aviation, Military | Aerospace, Aviation, Military |
| Color | - | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle Housing, Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | - | 1.27 µm |
| Contact Finish Thickness - Mating | - | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | - | Crimp |
| Current Rating (Amps) | - | 7.5 A |
| Features | - | Self Locking |
| Grade | Military | Military |
| Housing Color | - | Silver |
| Ingress Protection | Waterproof | Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Flange | Flange |
| Note | - | Contacts Not Included |
| Number of Positions | 10 | 4 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Orientation | N | E, N, A |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-38999 Series III | MIL-DTL-38999 Series III |
| Shell Finish | - | Electroless Nickel |
| Shell Material | - | Aluminum |
| Shell Size - Insert | - | 13-8 |
| Shell Size, MIL | C | C |
| Shielding | Shielded | Shielded |
| Termination | Crimp | Crimp |
| Type | - | For Female Sockets |
D38999/20FC Series
D38999 SER III RECEPTACLE
| Part | Shell Size, MIL | Contact Type | Housing Color | Shell Material | Type | Shell Finish | Primary Material | Orientation | Note | Mounting Feature | Connector Type | Number of Positions | Insert Material | Grade | Qualification | Termination | Ingress Protection | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Material Flammability Rating | Applications | Shell Size - Insert | Shielding | Contact Finish - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Corsair D38999/20FC4SEL | C | Crimp | Silver | Aluminum | For Female Sockets | Electroless Nickel | Metal | E | Contacts Not Included | Flange | Receptacle Housing | 4 | ||||||||||||||||||
Corsair D38999/20FC8SE | C | Aluminum | Electroless Nickel | Metal | E | Flange | Receptacle, Female Sockets | 8 | Thermoplastic | Military | MIL-DTL-38999 Series III | Crimp | Waterproof | Copper Alloy | 125 °C | -65 ░C | Silver | 1.27 µm | 50 µin | 7.5 A | UL94 V-0 | Aerospace, Aviation, Military | 13-8 | Shielded | Gold | |||||
Corsair D38999/20FC98HE | C | Metal | N | Flange | Receptacle, Female Sockets | 10 | Thermoplastic | Military | MIL-DTL-38999 Series III | Crimp | Waterproof | Copper Alloy | 125 °C | -65 ░C | UL94 V-0 | Aerospace, Aviation, Military | Shielded | Gold | ||||||||||||
Corsair D38999/20FC98PA | C | Aluminum | Electroless Nickel | Metal | A | Flange | Male Pins, Receptacle | 10 | Thermoplastic | Military | MIL-DTL-38999 Series III | Crimp | Waterproof | Copper Alloy | 125 °C | -65 ░C | Silver | 1.27 µm | 50 µin | 7.5 A | UL94 V-0 | Aerospace, Aviation, Military | Shielded | Gold | Self Locking |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 2 | $ 70.45 | |
| 10 | $ 64.82 | |||
| 50 | $ 59.63 | |||
| 100 | $ 54.86 | |||
| 500 | $ 50.47 | |||
Description
General part information
D38999/20FC Series
10 Position Circular Connector Receptacle, Female Sockets Crimp
