MODULAR CONNECTORS / ETHERNET CONNECTORS VS-PPC-C1-RJ45- MNNA-8I10G
1422108
ActivePhoenix Contact
MODULAR CONNECTORS / ETHERNET CONNECTORS VS-PPC-C1-RJ45- MNNA-8I10G
Description
General part information
1422108

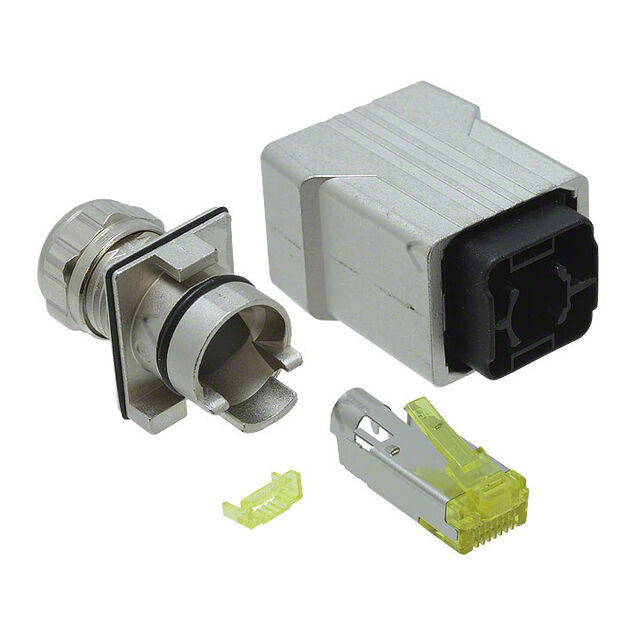

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422108 |
|---|---|
| Cable Type | Round Cable, Stranded Wires |
| Color | Translucent - Yellow |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 A |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6a |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 50 V |
| Wire Gauge (AWG) (Max) | 27 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
