C1BXG-1036M
ActiveCW Industries
IDC CABLE - CSR10G/AE10M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C1BXG-1036M
ActiveCW Industries
IDC CABLE - CSR10G/AE10M/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C1BXG-1036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.23 | |
| 10 | $ 7.08 | |||
| 25 | $ 6.39 | |||
| 50 | $ 5.92 | |||
| 100 | $ 5.50 | |||
| 250 | $ 5.00 | |||
| 500 | $ 4.67 | |||
| 1000 | $ 4.37 | |||
Description
General part information
C1BXG-1036M

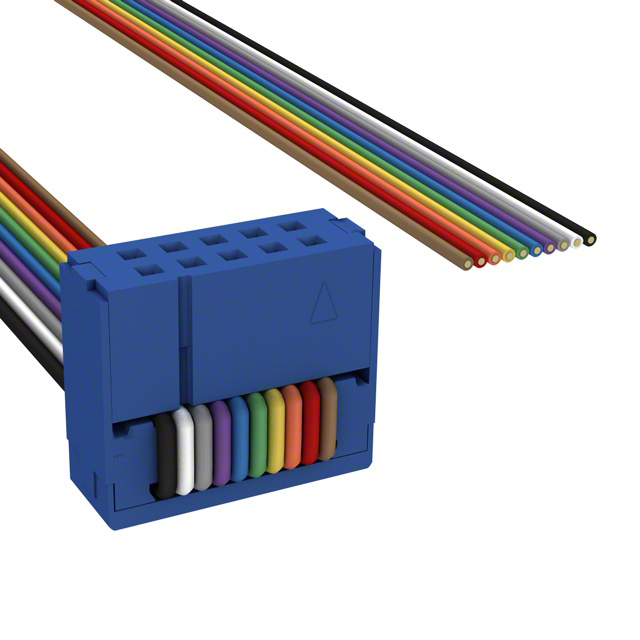

10 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
