TPLC-3R8/25MR10X16
ActiveTecate Group
CAP LITH HYBRID 25F 3.8V T/H
TPLC-3R8/25MR10X16
ActiveTecate Group
CAP LITH HYBRID 25F 3.8V T/H
Description
General part information
TPLC-3R8/25MR10X16

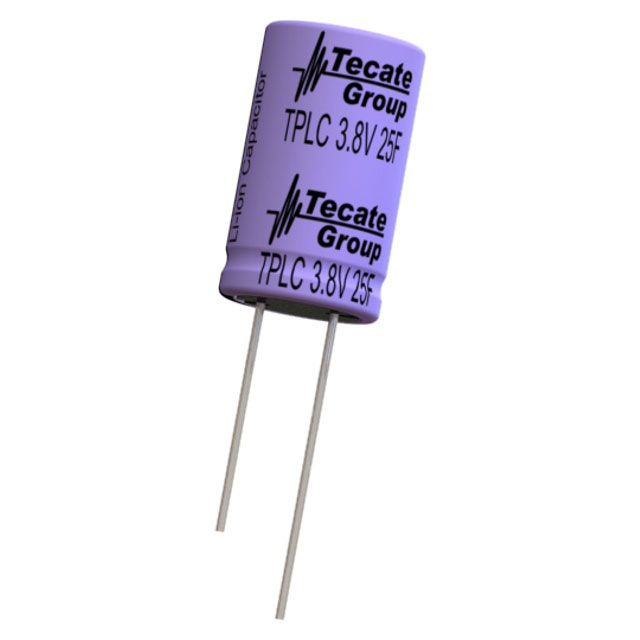

25 F (EDLC) Supercapacitor 3.8 V Radial, Can 270mOhm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | TPLC-3R8/25MR10X16 |
|---|---|
| Capacitance | 25 F |
| ESR (Equivalent Series Resistance) | 270 mOhm |
| Height - Seated (Max) | 0.709 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -15 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.394 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
