ZL30406QGG1
ActiveMicrochip Technology

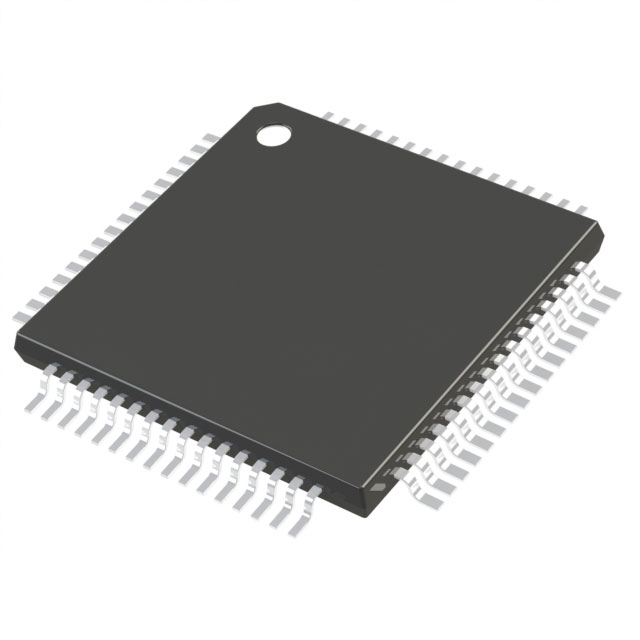

IC PLL SONET/SDH CLK MULT 64TQFP
Deep-Dive with AI
Search across all available documentation for this part.
ZL30406QGG1
ActiveMicrochip Technology
IC PLL SONET/SDH CLK MULT 64TQFP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZL30406QGG1 |
|---|---|
| Differential - Input:Output | No/Yes |
| Frequency - Max [Max] | 155.52 MHz |
| Input | CMOS |
| Main Purpose | SONET/SDH |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS, LVPECL, CML |
| Package / Case | 64-TQFP |
| PLL | True |
| Ratio - Input:Output [custom] | 1:6 |
| Supplier Device Package | 64-TQFP (10x10) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 2.97 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZL30406 Series
IC PLL SONET/SDH CLK MULT 64TQFP
| Part | Mounting Type | Ratio - Input:Output [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Circuits | Differential - Input:Output | Main Purpose | PLL | Supplier Device Package | Frequency - Max [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Input | Package / Case | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL30406QGG1 | Surface Mount | 1:6 | 85 °C | -40 °C | 1 | No/Yes | SONET/SDH | 64-TQFP (10x10) | 155.52 MHz | 2.97 V | 3.63 V | CMOS | 64-TQFP | CML, CMOS, LVPECL |
Description
General part information
ZL30406 Series
SONET/SDH IC 155.52MHz 1 Output 64-TQFP (10x10)
Documents
Technical documentation and resources
No documents available
