CAA573X7T2J155M640LH
ActiveTDK Corporation
CAP, 1.5UF, 630V, X7T, MLCC ROHS COMPLIANT: YES
CAA573X7T2J155M640LH
ActiveTDK Corporation
CAP, 1.5UF, 630V, X7T, MLCC ROHS COMPLIANT: YES
Description
General part information
CAA573X7T2J155M640LH

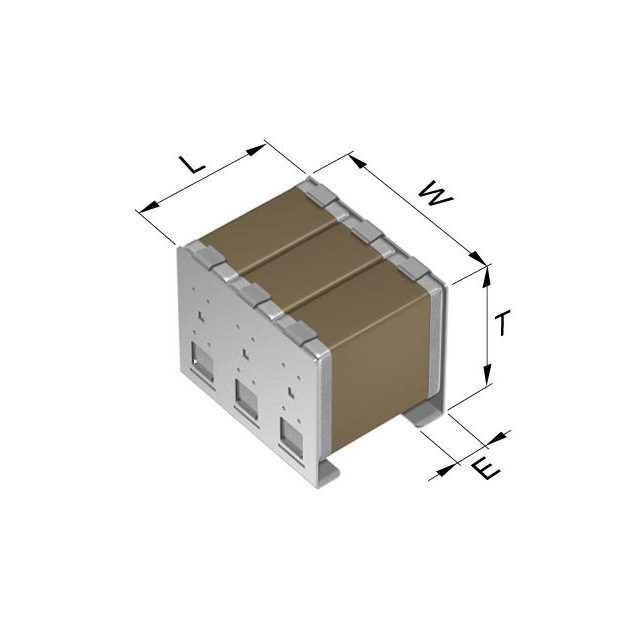

1.5 µF ±20% 630V Ceramic Capacitor X7T Stacked SMD, 2 L-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CAA573X7T2J155M640LH |
|---|---|
| Applications | General Purpose |
| Capacitance | 1.5 µF |
| Lead Count | 2 |
| Lead Style | J-Lead |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Stacked SMD |
| Package Leads | 2 Leads |
| Package Name | Stacked SMD |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.331 in |
| Temperature Coefficient | X7T |
| Thickness (Max) | 0.272 in |
| Tolerance | 20 % |
| Voltage - Rated | 630 V |
