162.6185.5402
ObsoleteLITTELFUSE

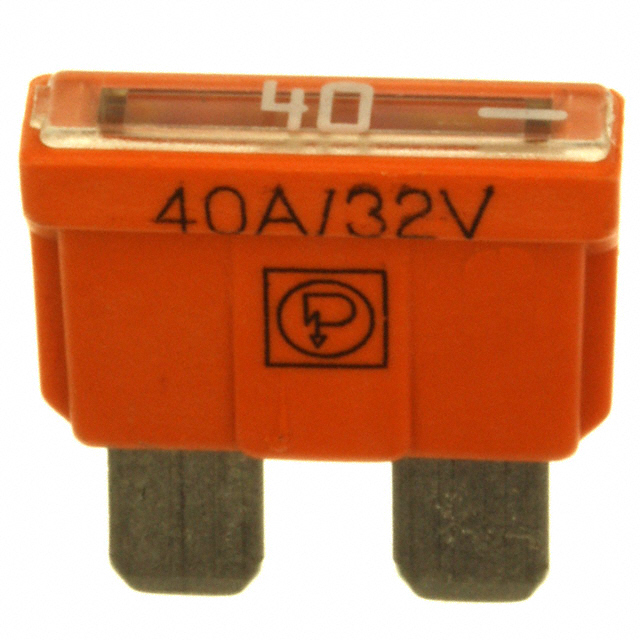

FUSE AUTO 40A 32VDC BLADE ATO
162.6185.5402
ObsoleteLITTELFUSE
FUSE AUTO 40A 32VDC BLADE ATO
Description
General part information
162.6185.5402
40 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
Technical Specifications
Parameters and characteristics for this part
| Specification | 162.6185.5402 |
|---|---|
| Approval Agency | cULus |
| Breaking Capacity | 1 kA |
| Color | Orange |
| Current Rating | 40 A |
| DC Cold Resistance | 0.00135 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 2000 |
| Mounting Type | Requires Holder |
| Package / Case | ATO/ATC, Blade |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.52 in |
| Size / Dimension Length | 0.748 in |
| Size / Dimension Width | 0.197 in |
| Voltage Rating - DC | 32 V |
