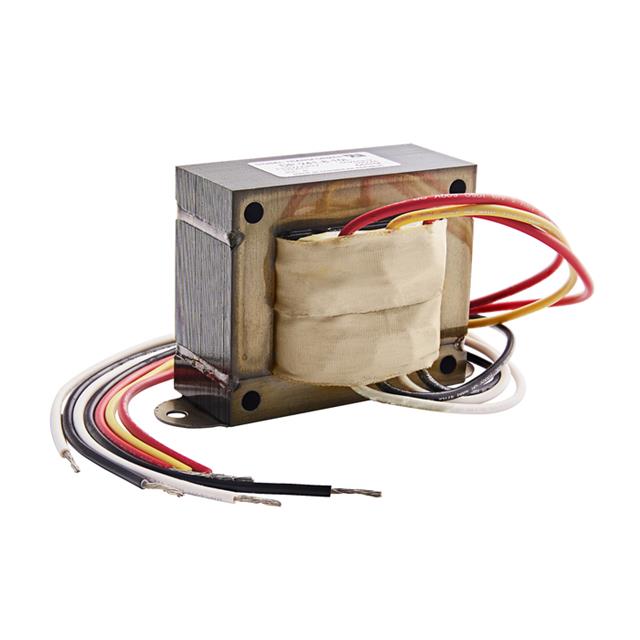

DP-241-8-24L
ActiveSignal Transformer
PWR XFMR LAMINATED 100VA CHAS MT
DP-241-8-24L
ActiveSignal Transformer
PWR XFMR LAMINATED 100VA CHAS MT
Description
General part information
DP-241-8-24L
PWR XFMR LAMINATED 100VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | DP-241-8-24L |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) | 4 A |
| Height - Seated (Max) | 67.7 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 100 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 102.4 mm |
| Size / Dimension Width | 58.5 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 2500 Vrms |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) | 24 V |
| Weight | 2.8 lbs |
