3210732
ObsoletePhoenix Contact

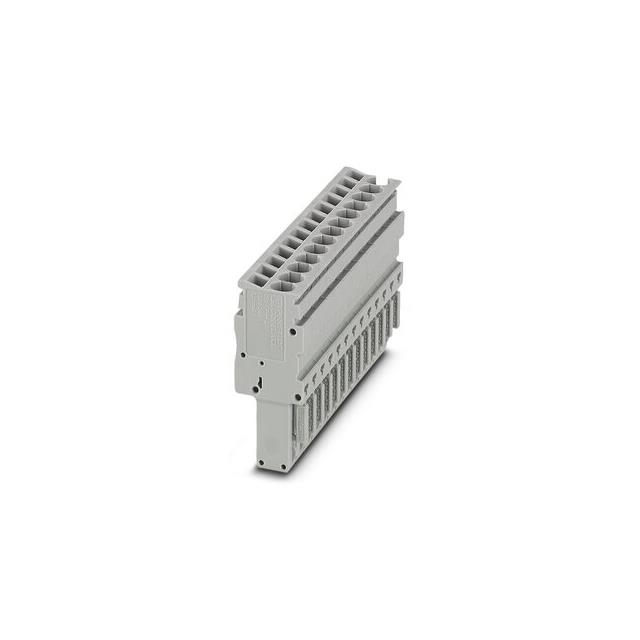

TERM BLOCK PLUG 13POS STR
3210732
ObsoletePhoenix Contact
TERM BLOCK PLUG 13POS STR
Description
General part information
3210732
13 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 3210732 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Housing Material | Nylon, Polyamide, PA |
| Insulation Height | 1.535 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 13 |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 13 |
| Termination Style | Tension Clamp, Screwless - Spring Cage |
| Type | Female Sockets, Plug |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
| Wire Strip Length | 10 mm |
