Description
General part information

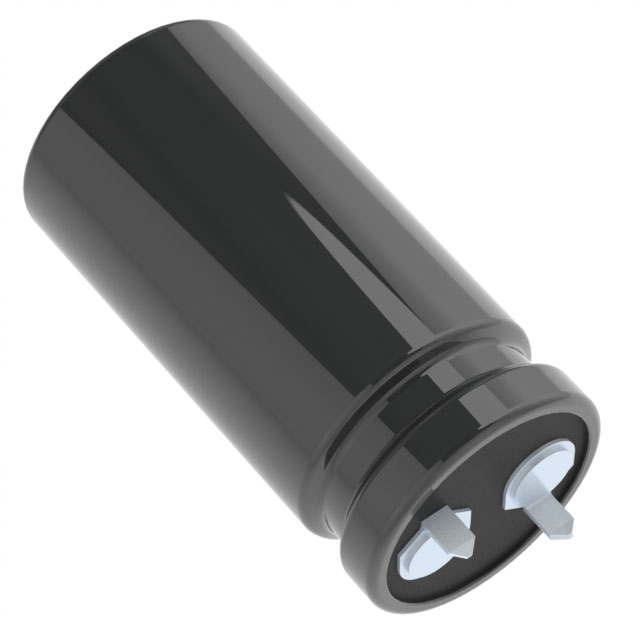

EKMH250VSN123MP45U
12000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 41mOhm @ 120Hz 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EKMH250VSN123MP45U |
|---|---|
| Applications | General Purpose |
| Capacitance | 12000 µF |
| ESR (Equivalent Series Resistance) | 41 mOhm |
| Height - Seated (Max) | 1.85 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 2.9052 A, 2.69 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 25 VAC |
