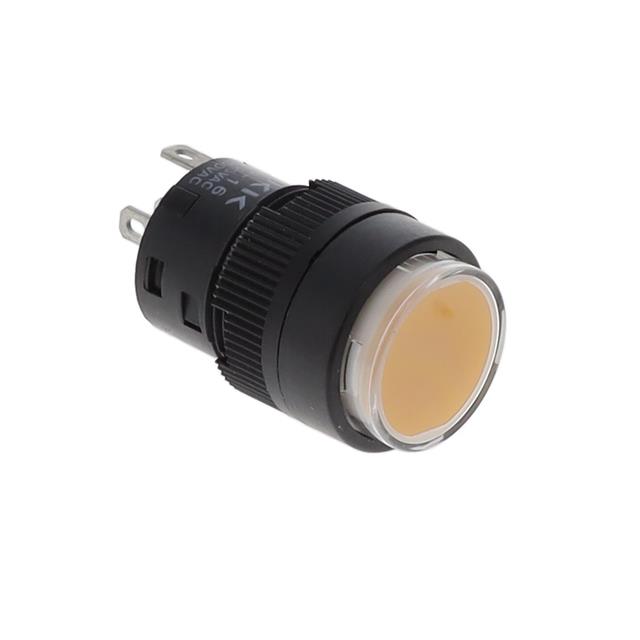

Specification	YB16CKW01-5D12-JD

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color	Amber
Color - Actuator/Cap	Clear (Amber Filter/Diffuser)
Current Rating	3 A
Electrical Life (Cycles)	100000 Cycles
Features	Tactile Feedback
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB Series

...

Part	Switch Function	Actuator Marking	Quick Connect Size (0.110")	Termination Style	Circuit	Illumination Voltage (Nominal)	Voltage Rating - DC	Mounting Type	Color	Illumination Type	Type	Voltage Rating - AC	Panel Cutout Diameter	Panel Cutout Shape	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Features	Color - Actuator/Cap	Mechanical Life (Cycles)	Electrical Life (Cycles)
NKK Switches YB15MKW01-2CF24-JB	On-Mom	No Marking	0.11 in	Quick Connect Solder	SPDT	24 V	30 V	Panel Mount Snap-In	Green Red	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Round	Stainless Steel	Clear (White Filter/Diffuser)	1000000 Cycles	100000 Cycles
NKK Switches YB16SKW01-5D05-JD	On-On	No Marking	0.11 in	Quick Connect Solder	SPDT	5 V	30 V	Front Panel Mount	Amber	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Square	Tactile Feedback	Clear (Amber Filter/Diffuser)	200000 Cycles	100000 Cycles
NKK Switches YB25SKW01-5D05-JD	On-Mom	No Marking	0.11 in	Quick Connect Solder	DPDT	5 V	30 V	Front Panel Mount	Amber	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Square	Voltage Reduction Lighting	Clear (Amber Filter/Diffuser)	1000000 Cycles	100000 Cycles
NKK Switches YB16CKG01-2CF02-JB	On-On		0.11 in	Quick Connect Solder	SPDT	2 VDC	28 V	Front Panel Mount	Green Red	LED	Illuminated Standard	28 V	16 mm	Circular	0.4 VA	-25 °C	50 °C	Button Round		Clear (White Filter/Diffuser)	200000 Cycles	100000 Cycles
NKK Switches YB15NKW01-5D12-JB	On-Mom	No Marking	0.11 in	Quick Connect Solder	SPDT	12 V	30 V	Panel Mount Snap-In	Amber	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Rectangular	Tactile Feedback	Clear (White Filter/Diffuser)	1000000 Cycles	100000 Cycles
NKK Switches YB16KKG01-2CF24-JB	On-On	No Marking	0.11 in	Quick Connect Solder	SPDT	24 V	28 V	Panel Mount Snap-In	Green Red	LED	Illuminated Standard	28 V	16 mm	Circular	0.4 VA	-25 °C	50 °C	Button Square	Tactile Feedback	Clear (White Filter/Diffuser)
NKK Switches YB25RKW01-5C05-JB	On-Mom	No Marking	0.11 in	Quick Connect Solder	DPDT	5 V	30 V	Front Panel Mount	Red	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Rectangular	Voltage Reduction Lighting	Clear (White Filter/Diffuser)
NKK Switches YB25RKW01-5D-JB	On-Mom	No Marking	0.11 in	Quick Connect Solder	DPDT	2 VDC	30 V	Front Panel Mount	Amber	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Rectangular	Voltage Reduction Lighting	Clear (White Filter/Diffuser)	1000000 Cycles	100000 Cycles
NKK Switches YB15RKG03-5D-JD	On-Mom	No Marking		PC Pin	SPDT	2 VDC	28 V	Front Panel Mount	Amber	LED	Illuminated Standard	28 V	16 mm	Circular	0.4 VA	-25 °C	50 °C	Button Rectangular	Tactile Feedback	Clear (Amber Filter/Diffuser)
NKK Switches YB15RKW01-5F24-JB	On-Mom	No Marking	0.11 in	Quick Connect Solder	SPDT	24 V	30 V	Front Panel Mount	Green	LED	Illuminated Standard	125 V	16 mm	Circular	3 A	-25 °C	50 °C	Button Rectangular	Tactile Feedback	Clear (White Filter/Diffuser)	1000000 Cycles	100000 Cycles
