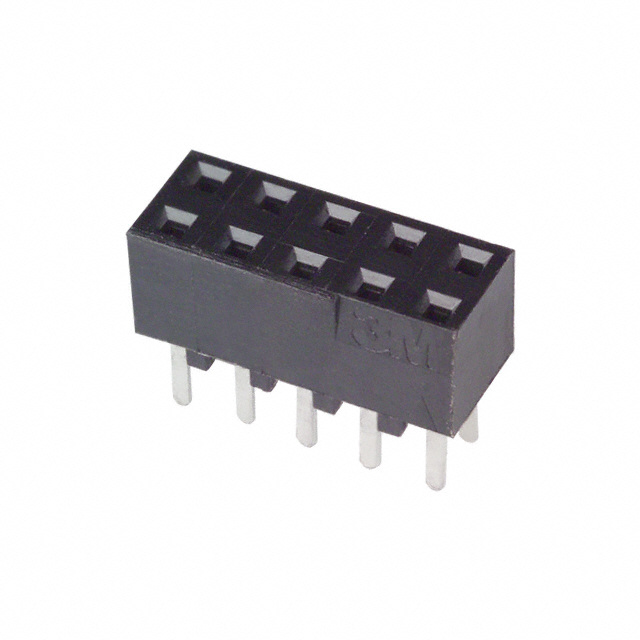

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT, 1502 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
150210-6002-RB
Active3M
PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT, 1502 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 150210-6002-RB | 150210 Series |
|---|---|---|
| Connector Type | Receptacle | Receptacle |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 15 - 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.38 - 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm | 5.08 µm |
| Contact Length - Post | 2.54 mm | 2.54 mm |
| Contact Length - Post | 0.1 in | 0.1 in |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Features | - | Board Guide, Pick and Place |
| Insulation Color | Black | Black |
| Insulation Height | 0.177 in | 0.177 - 0.183 in |
| Insulation Height | 4.5 mm | 4.5 - 4.65 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Surface Mount, Through Hole |
| Number of Positions | 10 | 10 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Row Spacing - Mating | 0.079 in | 0.079 in |
| Row Spacing - Mating | 2 mm | 2 mm |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 500 V | 500 V |
150210 Series
CONN RCPT 10POS 0.079 GOLD SMD
| Part | Insulation Material | Number of Rows | Mounting Type | Features | Connector Type | Number of Positions | Style | Voltage Rating | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Insulation Color | Contact Type | Fastening Type | Insulation Height | Insulation Height | Material Flammability Rating | Contact Finish - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Thermoplastic | 2 | Surface Mount | Board Guide | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.65 mm | 0.183 in | UL94 V-0 | Tin | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | |||
Thermoplastic | 2 | Surface Mount | Board Guide, Pick and Place | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.65 mm | 0.183 in | UL94 V-0 | Tin | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | |||
Thermoplastic | 2 | Surface Mount | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.65 mm | 0.183 in | UL94 V-0 | Tin | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | ||||
Thermoplastic | 2 | Surface Mount | Pick and Place | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.65 mm | 0.183 in | UL94 V-0 | Tin | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | |||
Thermoplastic | 2 | Surface Mount | Receptacle | 10 | Board to Board, Cable | 500 V | All | 15 µin | 0.38 µm | Square | Black | Female Socket | Push-Pull | 4.65 mm | 0.183 in | UL94 V-0 | Tin-Lead | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | ||||
Thermoplastic | 2 | Through Hole | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.5 mm | 0.177 in | UL94 V-0 | Tin-Lead | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | 2.54 mm | 0.1 in | ||
Thermoplastic | 2 | Through Hole | Receptacle | 10 | Board to Board, Cable | 500 V | All | 30 Áin | 0.76 Ám | Square | Black | Female Socket | Push-Pull | 4.5 mm | 0.177 in | UL94 V-0 | Tin | 0.079 in | 2 mm | Copper Alloy | Solder | 105 ░C | -55 °C | Gold | 200 µin | 5.08 µm | 0.079 in | 2 mm | 2.54 mm | 0.1 in |
