MMS-113-02-L-DV-TR
ActiveSamtec Inc.

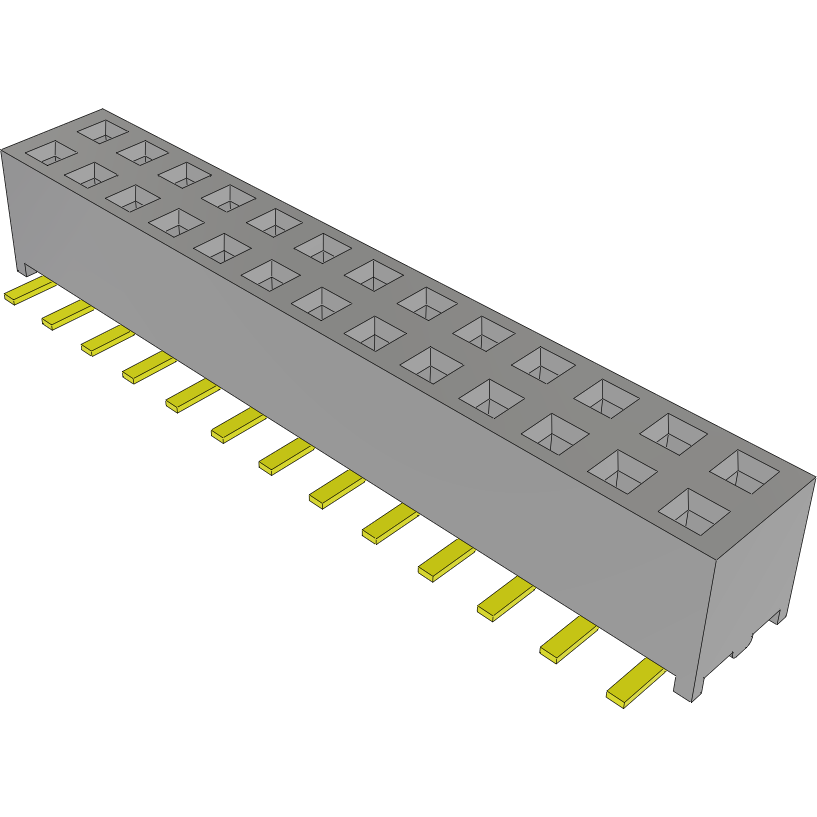

CONN SOCKET STRIP SKT 26 POS 2MM SOLDER ST TOP ENTRY SMD T/R
MMS-113-02-L-DV-TR
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 26 POS 2MM SOLDER ST TOP ENTRY SMD T/R
Description
General part information
MMS-113-02-L-DV-TR
CONN SOCKET STRIP SKT 26 POS 2MM SOLDER ST TOP ENTRY SMD T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | MMS-113-02-L-DV-TR |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 µin |
| Contact Type | Female Socket |
| Current Rating (Per Contact) | 3.9 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.177 in |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.079 in |
| Row Spacing - Mating | 0.079 in |
| Style | Board, Board or Cable |
| Termination | Solder |
