S02-07-R
UnknownTE Connectivity Aerospace, Defense and Marine

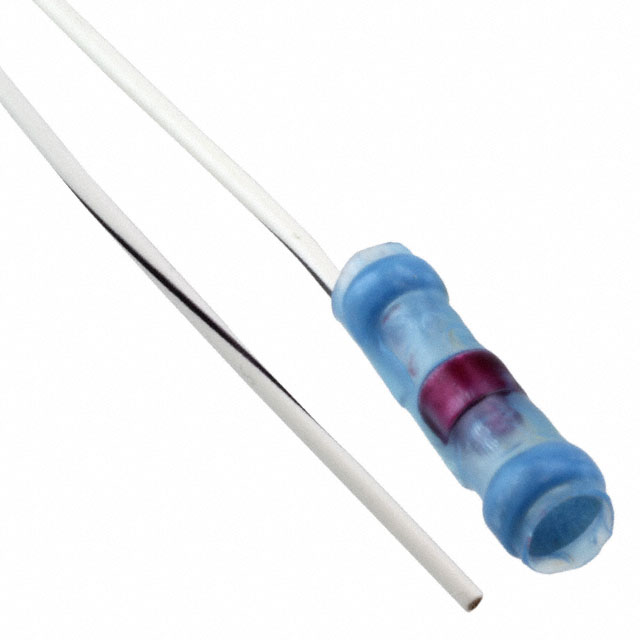

SLDR SLV WIRE-WIRE 0.105/0.145"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | S02-07-R | S02-07 Series |
|---|---|---|
| Color | Transparent - Blue | Transparent - Blue |
| Diameter | - | 2.65 - 3.68 mm |
| Diameter | - | 0.104 - 0.145 " |
| Diameter [diameter] | 0.145 in, 0.105 " | 0.105 - 0.145 in |
| Diameter [diameter] | 3.68 mm, 2.67 mm | 2.67 - 3.68 mm |
| Features | Immersion Resistant, Pre-Installed Lead Wire | Environment Resistant, Pre-Installed Lead Wire, Immersion Resistant |
| Length | 16.51 mm | 16.51 mm |
| Length | 0.65 " | 0.65 " |
| Type | Wire to Wire | Wire to Wire |
S02-07 Series
SLDR SLV WIRE-WIRE 0.105/0.145"
| Part | Type | Features | Length | Length | Color | Diameter [diameter] | Diameter [diameter] | Diameter | Diameter |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine S02-07-R-91 | Wire to Wire | Environment Resistant, Pre-Installed Lead Wire | 16.51 mm | 0.65 " | Transparent - Blue | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm | ||
TE Connectivity Aerospace, Defense and Marine S02-07-R-92CS816 | Wire to Wire | Environment Resistant, Pre-Installed Lead Wire | 16.51 mm | 0.65 " | Transparent - Blue | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm | ||
TE Connectivity Aerospace, Defense and Marine S02-07-RCS2811 | Wire to Wire | Environment Resistant, Immersion Resistant | 16.51 mm | 0.65 " | Transparent - Blue | 2.65 mm, 3.68 mm | 0.104 ", 0.145 " | ||
TE Connectivity Aerospace, Defense and Marine S02-07-R-90-120CS2811 | Wire to Wire | Environment Resistant, Immersion Resistant, Pre-Installed Lead Wire | 16.51 mm | 0.65 " | Transparent - Blue | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm | ||
TE Connectivity Aerospace, Defense and Marine S02-07-R | Wire to Wire | Immersion Resistant, Pre-Installed Lead Wire | 16.51 mm | 0.65 " | Transparent - Blue | 0.105 ", 0.145 in | 2.67 mm, 3.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1500 | $ 2.09 | |
Description
General part information
S02-07 Series
Wire to Wire Solder Sleeve Transparent - Blue 0.105" (2.67mm), 0.145" (3.68mm)
