AE168T13B8S-LC

Active

Conesys

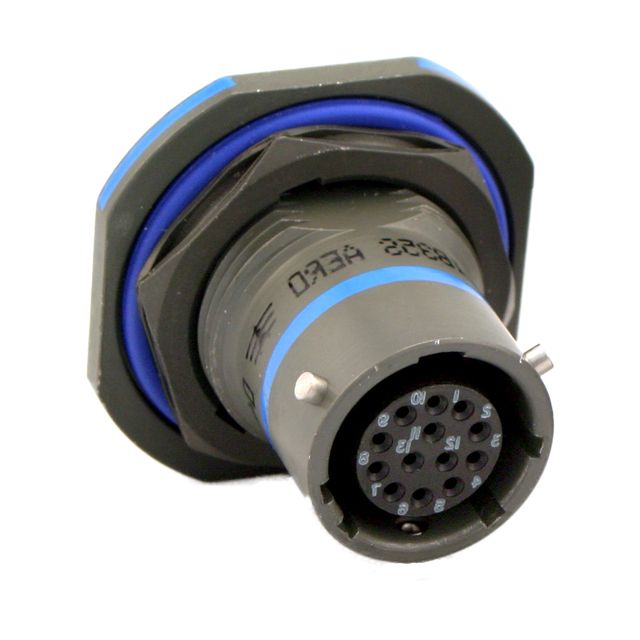

CONN RCPT HSG FMALE 8POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AE168T13B8S-LC

Active

Conesys

CONN RCPT HSG FMALE 8POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AE168T13B8S-LC	AE168T Series

Color	-	Olive Drab
Connector Type	Receptacle Housing	Receptacle, Male Pins, Receptacle Housing, Receptacle, Female Sockets
Contact Finish - Mating	-	Gold
Contact Size	20	16 - 20
Contact Size	-	4 - 23
Contact Size	-	22D, 16 (8), 20 (48)
Contact Type	Crimp	Crimp
Current Rating (Amps)	-	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Housing Color	Olive Drab	Olive Drab
Mounting Feature	Bulkhead - Rear Side Nut	Rear Side Nut, Bulkhead - Rear Side Nut
Mounting Type	-	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	4 - 128
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	N	B, A, N
Primary Material	-	Metal
Qualification	MIL-DTL-38999 Series I	MIL-DTL-38999 Series I
Shell Finish	Cadmium	Olive Drab Cadmium, Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	13-8	13-8, 13-4
Shell Size - Insert	-	13 - 25
Shell Size - Insert	-	4 - 97
Shielding	Shielded	Shielded
Termination	-	Crimp
Type	For Female Sockets	For Female Sockets, For Male Pins

AE168T Series

CONN RCPT MALE 15POS CRIMP

Part	Color	Fastening Type	Mounting Feature	Shell Finish	Shell Material	Connector Type	Mounting Type	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Primary Material	Orientation	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Housing Color	Qualification	Note	Contact Size	Contact Size	Type	Contact Type	Shell Size - Insert	Contact Finish - Mating	Current Rating (Amps)	Contact Size
Conesys AE168T15B15AB	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Male Pins, Receptacle	Free Hanging (In-Line)	15	15	15	Metal	B	Shielded	-65 ░C	347 °F	Crimp
Conesys AE168T25B43SA-LC		Bayonet Lock	Bulkhead - Rear Side Nut	Cadmium	Aluminum	Receptacle Housing		53	25	43		A	Shielded	-65 ░C	347 °F		Olive Drab	MIL-DTL-38999 Series I	Contacts Not Included	20, 23	16, 20	For Female Sockets	Crimp
Conesys AE168T13B8S	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Receptacle, Female Sockets	Free Hanging (In-Line)	8			Metal	N	Shielded	-65 ░C	347 °F	Crimp								13-8	Gold	7.5 A
Conesys AE168T15B15PB	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Male Pins, Receptacle	Free Hanging (In-Line)	15	15	15	Metal	B	Shielded	-65 ░C	347 °F	Crimp									Gold	7.5 A, 13 A
Conesys AE168T25B35BA	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Receptacle, Female Sockets	Free Hanging (In-Line)	128			Metal	A	Shielded	-65 ░C	347 °F	Crimp
Conesys AE168T13B98S-LC		Bayonet Lock	Bulkhead - Rear Side Nut	Cadmium	Aluminum	Receptacle Housing		10				N	Shielded	-65 ░C	347 °F		Olive Drab	MIL-DTL-38999 Series I	Contacts Not Included		20	For Female Sockets	Crimp
Conesys AE168T13B8A	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Male Pins, Receptacle	Free Hanging (In-Line)	8			Metal	N	Shielded	-65 ░C	347 °F	Crimp								13-8
Conesys AE168T25B35SA-LC		Bayonet Lock	Bulkhead - Rear Side Nut	Cadmium	Aluminum	Receptacle Housing		128				A	Shielded	-65 ░C	347 °F		Olive Drab	MIL-DTL-38999 Series I	Contacts Not Included			For Female Sockets	Crimp				22D
Conesys AE168T25B43PA	Olive Drab	Bayonet Lock	Rear Side Nut	Olive Drab Cadmium	Aluminum	Male Pins, Receptacle	Free Hanging (In-Line)	53	25	43	Metal	A	Shielded	-65 ░C	347 °F	Crimp									Gold	7.5 A, 13 A
Conesys AE168T25B43PA-LC		Bayonet Lock	Bulkhead - Rear Side Nut	Cadmium	Aluminum	Receptacle Housing		53	25	43		A	Shielded	-65 ░C	347 °F		Olive Drab	MIL-DTL-38999 Series I	Contacts Not Included	20, 23	16, 20	For Male Pins	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.69
		10	$ 44.80
		25	$ 39.53
		50	$ 35.37
		100	$ 31.01

Description

General part information

AE168T Series

8 Position Circular Connector Receptacle Housing Panel Mount
