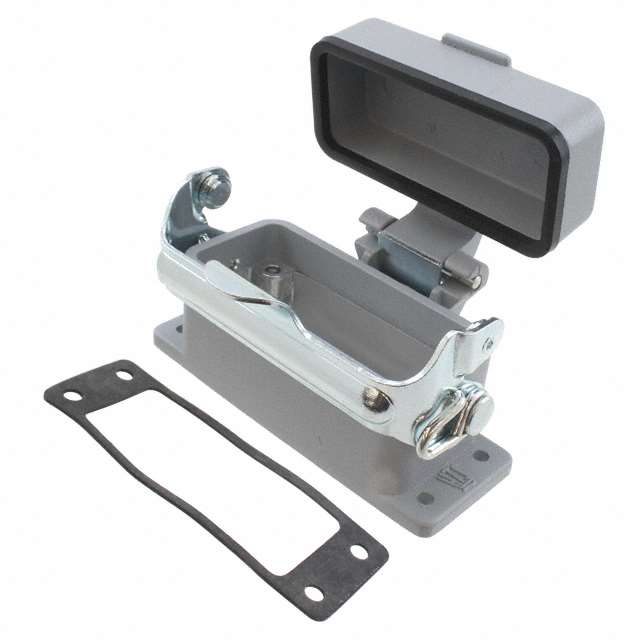

1-1102122-2
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102122-2
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102122-2 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 2 Liter |
| Size / Dimension [x] | 81 mm |
| Size / Dimension [x] | 3.189 in |
| Size / Dimension [y] | 1.142 in |
| Size / Dimension [y] | 29 mm |
| Size / Dimension [z] | 27 mm |
| Size / Dimension [z] | 1.063 " |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 160.04 | |
| 10 | $ 152.36 | |||
1102122 Series
CONN BASE BOTTOM ENTRY SZ2
| Part | Housing Color | Housing Finish | Ingress Protection | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size | Style | Connector Type | Housing Material | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102122-2 | Gray | Powder Coated | IP65 - Dust Tight, Water Resistant | 27 mm | 1.063 " | 81 mm | 1.142 in | 3.189 in | 29 mm | 2 Liter | Bottom Entry | Base - Panel Mount | Aluminum, Die Cast | Locking Clip (1) on Base Bottom |
Description
General part information
1102122 Series
Base - Panel Mount Connector Bottom Entry 2 IP65 - Dust Tight, Water Resistant
