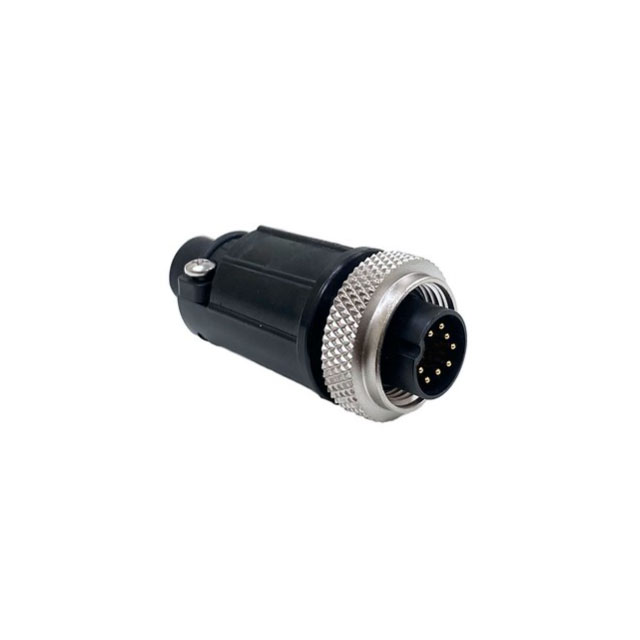

SF3282-8PG-520
ActiveSWITCHCRAFT/CONXALL
CIRCULAR CONNECTOR, MULTI-CON-X SERIES, CABLE MOUNT PLUG, 8 CONTACTS, SOLDER PIN, THREADED
SF3282-8PG-520
ActiveSWITCHCRAFT/CONXALL
CIRCULAR CONNECTOR, MULTI-CON-X SERIES, CABLE MOUNT PLUG, 8 CONTACTS, SOLDER PIN, THREADED
Description
General part information
SF3282-8PG-520
8 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | SF3282-8PG-520 |
|---|---|
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) |
| Cable Opening | 0.2 in |
| Color | Black, Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating | 5.6 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Cable Clamp, Backshell |
| Ingress Protection Description | Waterproof, Water Resistant, Dust Tight |
| Ingress Protection IP Rating | IP68, IP66 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shielding | Shielded |
| Termination | Solder Cup |
