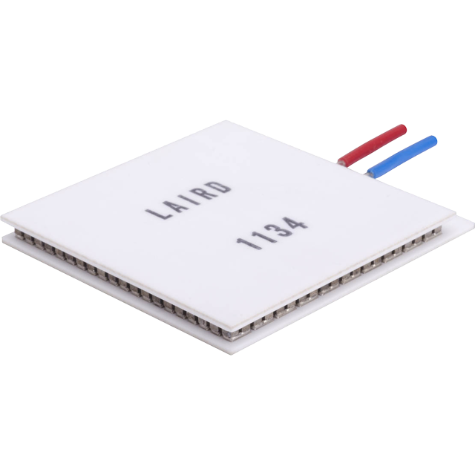

Specification	387004980

Current - Max	8.5 A
Delta Tmax	71 °C
Features	Lead Wires, Sealed, Epoxy
Maximum Power Dissipation (Qmax)	127.5 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	2.48 Ohms
Type	TEC (Thermoelectric Cooler)
Voltage - Max	24.9 V

UTX Series

Thermoelectric Peltier Modules UltraTEC UTX Series, Thermoelectric Cooler, 95W cooling power

Part	Operating Temperature	Current - Max	Type	Delta Tmax	Maximum Power Dissipation (Qmax)	Features	Resistance	Voltage - Max	Number of Stages
Tark Thermal Solutions 387004694	80 °C	14.7 A	TEC (Thermoelectric Cooler)	67 °C	126.2 W	Lead Wires Sealed Silicone RTV	940 mOhms	14.5 V	1
Tark Thermal Solutions 387004724	80 °C	8.5 A	TEC (Thermoelectric Cooler)	71 °C	182.6 W	Lapped Lead Wires	3.58 Ohms	35.9 V	1
Tark Thermal Solutions 387004679	80 °C	8.5 A	TEC (Thermoelectric Cooler)	71 °C	127.5 W	Lapped Lead Wires	2.48 Ohms	24.9 V	1
Tark Thermal Solutions 387004719	80 °C	15.1 A	TEC (Thermoelectric Cooler)	70 °C	288 W	Lapped Lead Wires		30.8 V	1
Tark Thermal Solutions 387004680	80 °C	11.1 A	TEC (Thermoelectric Cooler)	67 °C	95.4 W	Lapped Lead Wires	1.2 Ohm	14.5 V	1
Tark Thermal Solutions 387004685	80 °C	14.6 A	TEC (Thermoelectric Cooler)	71.7 °C	125.7 W	Lapped Lead Wires	940 mOhms	14.6 V	1
Tark Thermal Solutions 387004693	80 °C	15.4 A	TEC (Thermoelectric Cooler)	68 °C	340.6 W	Lead Wires Sealed Silicone RTV	1.97 Ohms	36 V	1
Tark Thermal Solutions 387004713	80 °C	15.4 A	TEC (Thermoelectric Cooler)	68 °C	236.6 W	Lead Wires Sealed Silicone RTV	1.37 Ohms	25 V	1
Tark Thermal Solutions 387004984	80 °C	6 A	TEC (Thermoelectric Cooler)	67 °C	80.9 W	Lapped Lead Wires	3.49 Ohms	22.6 V	1
Tark Thermal Solutions 387004983			TEC (Thermoelectric Cooler)						1
