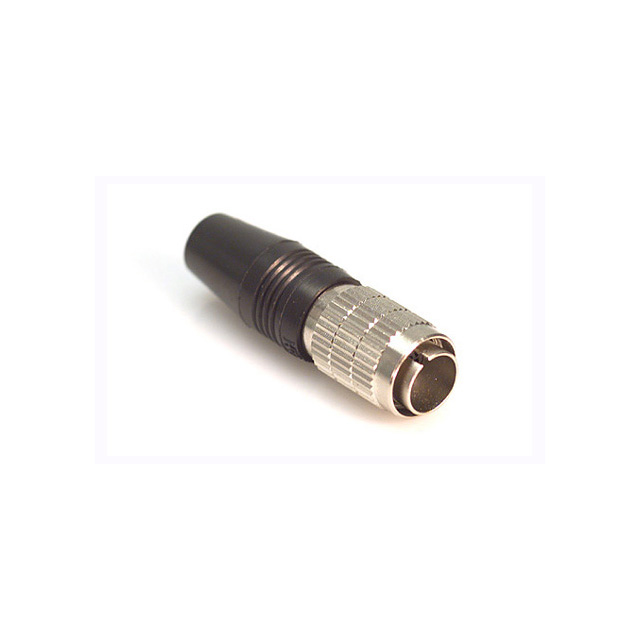

Specification	HR25-9TP-20PC(72)

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Threaded
Features	Backshell, Strain Relief, Coupling Nut, Cable Clamp
Housing Color	Silver
Insert Material	Polyphenylene Sulfide, PPS
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	9
Shell Size - Insert	9
Shielding	Shielded
Type	For Male Pins

HR25 Series

Standard Circular Connector 20P PLUG SH SZ 9 FEM

...

Part	Fastening Type	Shell Material	Shielding	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Features	Shell Size - Insert	Shell Size - Insert	Contact Shape	Orientation	Housing Color	Mounting Type	Shell Finish	Note	Type	Insert Material	Connector Type	Contact Type	Material Flammability Rating	Primary Material	Voltage Rating (AC)	Voltage Rating (DC)	Applications	Termination	Contact Material	Contact Finish - Mating	Color	Current Rating	Mounting Feature	Contact Finish Thickness - Mating	Plating	Backshell Material
Hirose Electric Co Ltd HR25-7R-6PA(71)
Hirose Electric Co Ltd HR25-9R-20P(71)
Hirose Electric Co Ltd HR25-9TJ-16SC	Threaded	Zinc Alloy	Shielded	16	85 °C	-25 °C	Backshell Cable Clamp Strain Relief	9	9	Circular	Keyed	Silver	Free Hanging (In-Line)	Nickel	Contacts Not Included	For Female Sockets	Polyphenylene Sulfide PPS	Jack Housing	Crimp	UL94 V-0
Hirose Electric Co Ltd HR25-9TR-12S(71)	Threaded	Zinc Alloy	Shielded	12	85 °C	-25 °C		9	9		Keyed		Panel Mount	Nickel			Polyphenylene Sulfide PPS	Female Sockets Receptacle		UL94 V-0	Metal	30 VAC	42 VDC	Industrial	Solder Cup	Phosphor Bronze	Gold	Silver	1 A	Bulkhead Rear Side Nut	8 µin
Hirose Electric Co Ltd HR25-7TJ-6P(72)	Threaded	Zinc Alloy	Shielded	6	85 °C	-25 °C	Backshell Clamp Strain Relief	7	7		Keyed		Free Hanging (In-Line)	Nickel			Polyphenylene Sulfide PPS	Jack Male Pins		UL94 V-0	Metal	30 VAC	42 VDC	Industrial	Solder Cup	Phosphor Bronze	Gold	Black Silver	1 A		8 µin	Nickel	Brass
Hirose Electric Co Ltd HR25-9TR-20PC	Threaded	Zinc Alloy	Shielded	20	85 °C	-25 °C		9	9	Circular	Keyed	Silver	Panel Mount	Nickel	Contacts Not Included	For Male Pins	Polyphenylene Sulfide PPS	Receptacle Housing	Crimp	UL94 V-0										Bulkhead Rear Side Nut
Hirose Electric Co Ltd HR25-7TR-4P
Hirose Electric Co Ltd HR25-7TP-8P
Hirose Electric Co Ltd HR25-7R-4PA(71)
Hirose Electric Co Ltd HR25-7TP-6S
