255103-01-06.00
ActiveAmphenol RF

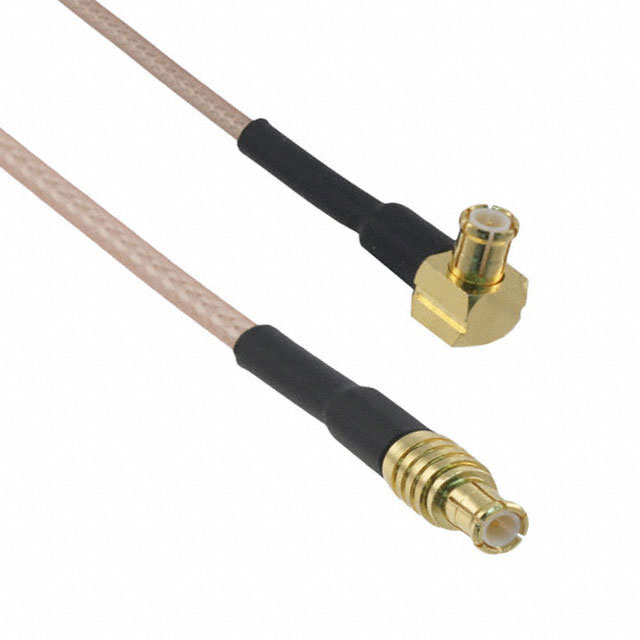

CBL ASSY MCX PLUG TO PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMCX to MCX Assemblies
255103-01-06.00
ActiveAmphenol RF
CBL ASSY MCX PLUG TO PLUG 6"
Deep-Dive with AI
DocumentsMCX to MCX Assemblies
Technical Specifications
Parameters and characteristics for this part
| Specification | 255103-01-06.00 |
|---|---|
| 1st Connector | MCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 50 Ohms |
| Style | MCX to MCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 21.33 | |
| 10 | $ 18.48 | |||
| 25 | $ 17.52 | |||
| 50 | $ 17.26 | |||
| 100 | $ 15.23 | |||
| 250 | $ 14.22 | |||
| 500 | $ 13.91 | |||
Description
General part information
255103-01-06.00
Cable Assembly Coaxial MCX to MCX RG-316 6.000" (152.40mm)
