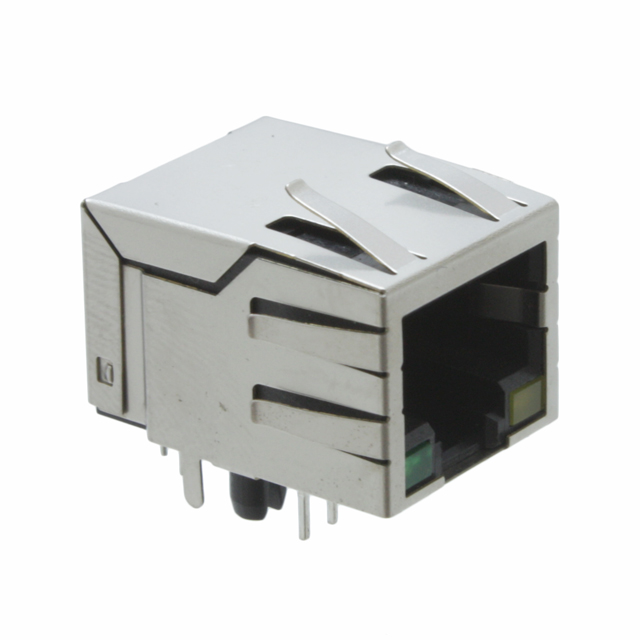

A60-112-331P432
ObsoleteEDAC Inc.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A60-112-331P432
ObsoleteEDAC Inc.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A60-112-331P432 | A60-112 Series |
|---|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 | RJ45 |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | Flash |
| Contact Material | Phosphor Bronze | Phosphor Bronze, Copper Alloy |
| Features | - | Board Guide |
| Height Above Board | 0.535 in | 0.535 in |
| Height Above Board | 13.59 mm | 13.59 mm |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled, Polyester, Polybutylene Terephthalate (PBT) |
| LED Color | Yellow, Green | Yellow, Green, Does Not Contain LED, Green - Green |
| Mounting Type | Through Hole | Through Hole |
| Number of Cores per Jack | 8 | 8 |
| Number of Ports | 1 | 1 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Orientation | 90 ° | 90 ° |
| Shield Material | Copper Alloy | Copper Alloy, Brass |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger |
| Tab Direction | Down | Down, Up |
| Termination | Solder | Solder |
A60-112 Series
CONN JACK 1PORT 1000 BASE-T PCB
| Part | Number of Ports | Number of Cores per Jack | Contact Material | Orientation | Height Above Board | Height Above Board | LED Color | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Applications | Mounting Type | Housing Material | Shielding | Shield Material | Contact Finish Thickness | Tab Direction | Termination | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. A60-112-331P432 | 1 | 8 | Phosphor Bronze | 90 ° | 0.535 in | 13.59 mm | Green, Yellow | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Shielded, EMI Finger | Copper Alloy | Flash | Down | Solder | RJ45 | |
EDAC Inc. A60-112-200P471 | 1 | 8 | Phosphor Bronze | 90 ° | 0.535 in | 13.59 mm | Does Not Contain LED | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Polyester | Shielded, EMI Finger | Copper Alloy | Flash | Up | Solder | RJ45 | |
EDAC Inc. A60-112-233P471 | 1 | 8 | Copper Alloy | 90 ° | 0.535 in | 13.59 mm | Green - Green | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Polyester | Shielded, EMI Finger | Brass | Flash | Up | Solder | RJ45 | Board Guide |
EDAC Inc. A60-112-331P411 | 1 | 8 | Phosphor Bronze | 90 ° | 0.535 in | 13.59 mm | Green, Yellow | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Shielded, EMI Finger | Copper Alloy | Flash | Down | Solder | RJ45 | |
EDAC Inc. A60-112-300P432 | 1 | 8 | Phosphor Bronze | 90 ° | 0.535 in | 13.59 mm | Does Not Contain LED | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Polyester | Shielded, EMI Finger | Copper Alloy | Flash | Down | Solder | RJ45 | |
EDAC Inc. A60-112-300P492 | 1 | 8 | Phosphor Bronze | 90 ° | 0.535 in | 13.59 mm | Does Not Contain LED | 1 | 70 °C | 0 °C | Gold | 10/100/1000 Base-T, AutoMDIX | Through Hole | Polybutylene Terephthalate (PBT), Glass Filled | Shielded, EMI Finger | Copper Alloy | Flash | Down | Solder | RJ45 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A60-112 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
