Description
General part information

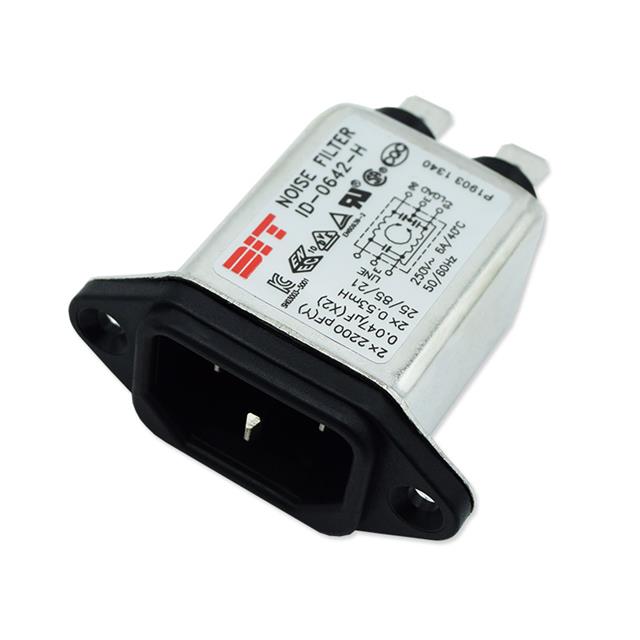

ID-0642S
Single Phase EMC/EMI Line Filter 6 A 250V 250V 50 ~ 60Hz Single Stage IEC 320-C14, Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | ID-0642S |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, CQC, CSA, TUV, ENEC, VDE |
| Configuration | Single Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | IEC 320-C14, Solder Lug |
| Voltage - Rated AC | 250 V |
| Voltage - Rated DC | 250 V |
