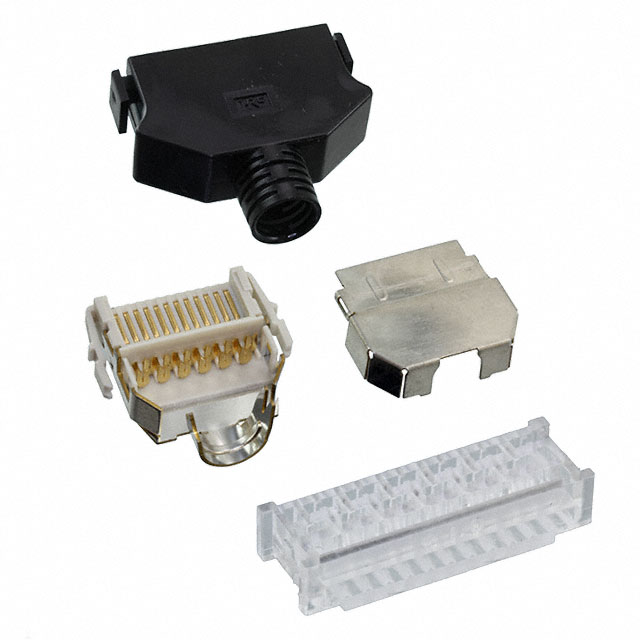

3130-12P-C(50)
ObsoleteHirose Electric Co Ltd
CONN PLUG 12POS CRIMP 26-28AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3130-12P-C(50)
ObsoleteHirose Electric Co Ltd
CONN PLUG 12POS CRIMP 26-28AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3130-12P-C(50) | 3130 Series |
|---|---|---|
| Accessory Type | - | Connector |
| Cable Termination | Crimp | Crimp |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Type | Center Strip Contact | Center Strip Contact |
| Features | Cap (Cover) | Cap (Cover) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 12 | 6 - 14 |
| Number of Positions | - | 16 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Wire Type | Discrete | Discrete |
3130 Series
CONN PLUG 6P CRIMP 26-28AWG GOLD
| Part | Number of Positions | Contact Finish | Mounting Type | Number of Rows | Cable Termination | Connector Type | Wire Type | Contact Type | Pitch [x] | Pitch [x] | Features | Color | Accessory Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd 3130A-6PA(50) | 6 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | ||
Hirose Electric Co Ltd 3130-12CT | Connector | |||||||||||||
Hirose Electric Co Ltd 3130-16PA-C(50) | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | 16 | ||
Hirose Electric Co Ltd 3130-12P-C(50) | 12 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | ||
Hirose Electric Co Ltd 3130-8P-C(50) | 8 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | ||
Hirose Electric Co Ltd 3130-14CT | Connector | |||||||||||||
Hirose Electric Co Ltd 3130-14P-C(50) | 14 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | ||
Hirose Electric Co Ltd 3130-6P-C(50) | 6 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black | ||
Hirose Electric Co Ltd 3130A-6P-C(50) | 6 | Gold | Free Hanging (In-Line) | 1 | Crimp | Plug | Discrete | Center Strip Contact | 0.05 in | 1.27 mm | Cap (Cover) | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3130 Series
12 Position Rectangular Plug Connector Crimp Gold 26-28 AWG
