PPTDE-5/8

Active

Bertech

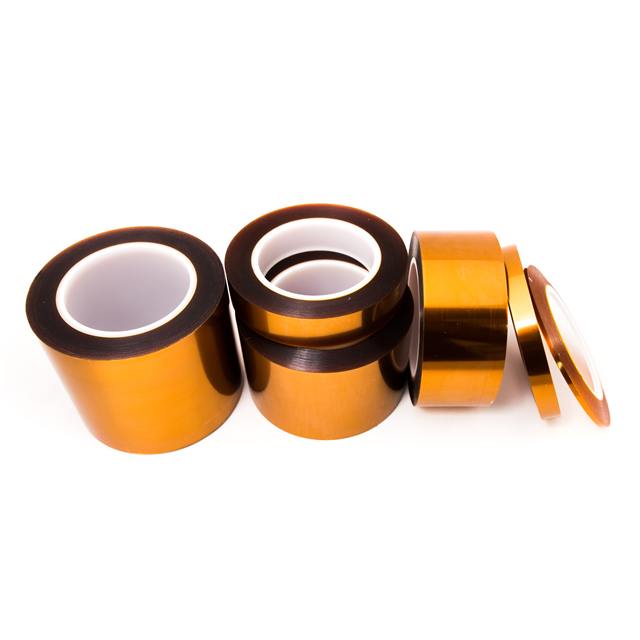

TAPE DBL SIDED AMBER 5/8"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPTDE-5/8

Active

Bertech

TAPE DBL SIDED AMBER 5/8"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.92

Description

General part information

PPTDE Series

Double Coated, Double Sided Tape Silicone Adhesive Amber 0.63" (16.00mm) 5/8" X 108' (32.9m) 36 yds

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PPTDE-5/8	PPTDE Series

Adhesive	Silicone	Silicone
Backing, Carrier	Polyimide	Polyimide
Color	Amber	Amber
Length	36 yd	36 yd
Length	32.9 m	32.9 m
Length	108 ft	108 ft
Shelf Life	-	18 Months
Shelf Life Start	-	Date of Manufacture
Tape Type	Double Coated, Double Sided	Double Coated, Double Sided
Temperature Range	-	-100 - -73 °F
Temperature Range	-	230 - 260 °C
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Max]	500 °F	500 °F
Temperature Range [Min]	-73 °C	-73 °C
Temperature Range [Min]	-99 °F	-99 °F
Thickness	0.102 mm	0.102 mm
Thickness	4 mils	4 mils
Thickness	0.004 in	0.004 in
Thickness - Adhesive	0.003 "	0.003 "
Thickness - Adhesive	0.076 mm	0.076 mm
Thickness - Adhesive	3 mils	3 mils
Thickness - Backing, Carrier	1 mils	1 mils
Thickness - Backing, Carrier	0.025 mm	0.025 mm
Thickness - Backing, Carrier	0.001 "	0.001 "
Usage	Masking	Masking, Bonding, High Temperature
Width	0.625 in	0.125 - 19.05 "
Width	0.63 in	0.13 - 41.28 "
Width	16 mm	0.19 - 254 mm
Width	-	1 3/4, 1 1/2
Width	-	17.48 - 228.6 mm
Width	-	0.69 - 10 in
Width	-	0.31 - 5.91 in
Width	-	8 - 127 mm
Width	-	-
Width	-	1 5/8
Width	-	0.1875 in
Width	-	0.6875 in

PPTDE Series

TAPE DBL SIDED AMBER 13/16"X36YD

Part	Length	Length	Length	Color	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Adhesive	Thickness	Thickness	Thickness	Usage	Width	Width	Width	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width	Shelf Life	Temperature Range [Min]	Temperature Range [Max]	Shelf Life Start	Width [x]	Width [x]	Width [y]	Width [y]
Bertech PPTDE-13/16	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking	0.81 "	20.65 mm	0.8125 "	1 mils	0.025 mm	0.001 "
Bertech PPTDE-1 3/4	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking	1.75 in	44.45 mm		1 mils	0.025 mm	0.001 "	1 3/4
Bertech PPTDE-1/2	36 yd	32.9 m	108 ft	Amber					Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Bonding, High Temperature	0.5 in	12.7 mm	0.5 in	1 mils	0.025 mm	0.001 "		18 Months	-100 °F, -73 °C	230 °C, 260 °C	Date of Manufacture
Bertech PPTDE-7	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking				1 mils	0.025 mm	0.001 "						177.8 mm	7 in
Bertech PPTDE-100MM	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking				1 mils	0.025 mm	0.001 "								3.94 in	100 mm
Bertech PPTDE-2 1/4	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking				1 mils	0.025 mm	0.001 "								2.25 in	57.15 mm
Bertech PPTDE-3	36 yd	32.9 m	108 ft	Amber					Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Bonding, High Temperature				1 mils	0.025 mm	0.001 "		18 Months	-100 °F, -73 °C	230 °C, 260 °C	Date of Manufacture	76.2 mm	3 in
Bertech PPTDE-75MM	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking				1 mils	0.025 mm	0.001 "						75 mm	2.95 in
Bertech PPTDE-3/8	36 yd	32.9 m	108 ft	Amber					Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Bonding, High Temperature	0.38 in	9.65 mm	0.375 in	1 mils	0.025 mm	0.001 "		18 Months	-100 °F, -73 °C	230 °C, 260 °C	Date of Manufacture
Bertech PPTDE-8	36 yd	32.9 m	108 ft	Amber	-73 °C	260 °C	-99 °F	500 °F	Double Coated, Double Sided	0.003 "	0.076 mm	3 mils	Polyimide	Silicone	0.102 mm	4 mils	0.004 in	Masking	8 in	203.2 mm		1 mils	0.025 mm	0.001 "
