100SP3T2B4M6RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

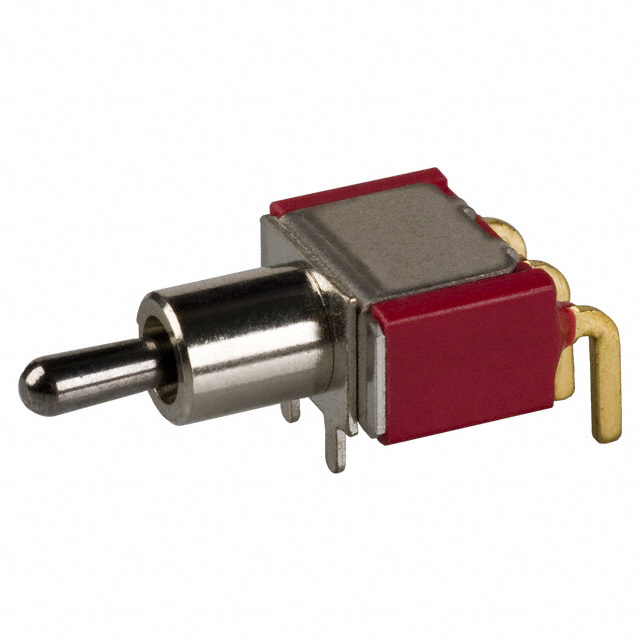

100SP3T2B4M6RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100SP3T2B4M6RE	100SP3 Series

Actuator Length	-	6.86 mm
Actuator Length [x]	5.08 mm	5.08 - 21.34 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round, Flat Anti-Rotation, Locking Lever
Bushing Thread	Unthreaded	1/4-40, 15/32-32, Unthreaded, M6 x 0.75
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 5 VA
Electrical Life	40000 Cycles	40000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole, Right Angle	Through Hole, Vertical, Right Angle, Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 11.91 in
Switch Function	On-Off-On	On-Off-On, On-On
Termination Style	PC Pin	Solder Lug, PC Pin, Wire Wrap, Quick Connect - 0.062" (1.5mm)
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

100SP3 Series

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Electrical Life	Features	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Switch Function	Illumination	Current Rating (Amps)	Voltage Rating - DC	Actuator Material	Actuator Length [x]	Voltage Rating - AC	Circuit	Mounting Type
E-Switch 100SP3T1B6M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	10.41 mm	20 V	SPDT
E-Switch 100SP3T7B13M2REH	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	15/32-32	11.91 mm	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	13 mm	20 V	SPDT
E-Switch 100SP3T2B9M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT
E-Switch 100SP3T2B4VS2QE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	5 A	28 V	Brass, Chrome Plated	5.08 mm	120 V	SPDT	Through Hole
E-Switch 100SP3T2B9M1RE	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT
E-Switch 100SP3T2B1M2QEH	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	5 A	28 V	Brass, Chrome Plated	5.08 mm	120 V	SPDT
E-Switch 100SP3T8B13M1RE	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	15/32-32	11.91 mm	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	18 mm	20 V	SPDT
E-Switch 100SP3T3B1M1REH	-30 ░C	85 °C	Solder Lug	40000 Cycles	Epoxy Sealed Terminals	Standard Round	1/4-40	0.25 in	On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	13.97 mm	20 V	SPDT
E-Switch 100SP3T2B4M2RE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	5.08 mm	20 V	SPDT	Through Hole
E-Switch 100SP3T1B4M7RE	-30 ░C	85 °C	PC Pin	40000 Cycles	Epoxy Sealed Terminals	Standard Round	Unthreaded		On-Off-On	Non-Illuminated	0.4 VA	20 V	Brass, Chrome Plated	10.41 mm	20 V	SPDT	Right Angle, Through Hole, Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.50
		10	$ 3.88
		25	$ 3.66
		50	$ 3.50
		108	$ 3.33
		324	$ 3.11
		540	$ 3.00
		1080	$ 2.87

Description

General part information

100SP3 Series

Toggle Switch SPDT Through Hole, Right Angle
