LFV18-6Q

Active

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Search across all available documentation for this part.

Active

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFV18-6Q	LFV18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Butted Seam	Butted Seam
Insulation	Insulated	Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall [x]	0.88 in	0.88 in
Length - Overall [x]	22.35 mm	22.35 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination [x]	0.45 in	0.45 in
Length - Termination [x]	11.43 mm	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	6 Stud	6 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Snap, Spring	Snap, Spring
Termination	Crimp	Crimp
Width - Outer Edges [y]	0.27 in	0.27 in
Width - Outer Edges [y]	6.86 mm	6.86 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

LOCKING FORK VINYL INSULATED HIGHLANDBAG 25/BAG

Part	Length - Termination [x]	Length - Termination [x]	Wire Gauge [Max]	Wire Gauge [Min]	Features	Mounting Type	Insulation Diameter	Insulation Diameter [diameter]	Termination	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Contact Material	Insulation	Terminal Type	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Material - Insulation	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
3M LFV18-8Q	0.45 in	11.43 mm	22 AWG	17.5 AWG	Butted Seam	Free Hanging (In-Line)	3.68 mm	0.145 "	Crimp	0.88 in	22.35 mm	8 Stud	Copper, ETP	Insulated	Snap, Spring	Tin	0.25 in	6.35 mm	Vinyl	Red
3M LFV18-6Q	0.45 in	11.43 mm	22 AWG	17.5 AWG	Butted Seam	Free Hanging (In-Line)	3.68 mm	0.145 "	Crimp	0.88 in	22.35 mm		Copper, ETP	Insulated	Snap, Spring	Tin	0.25 in	6.35 mm	Vinyl	Red	0.27 in	6.86 mm	6 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

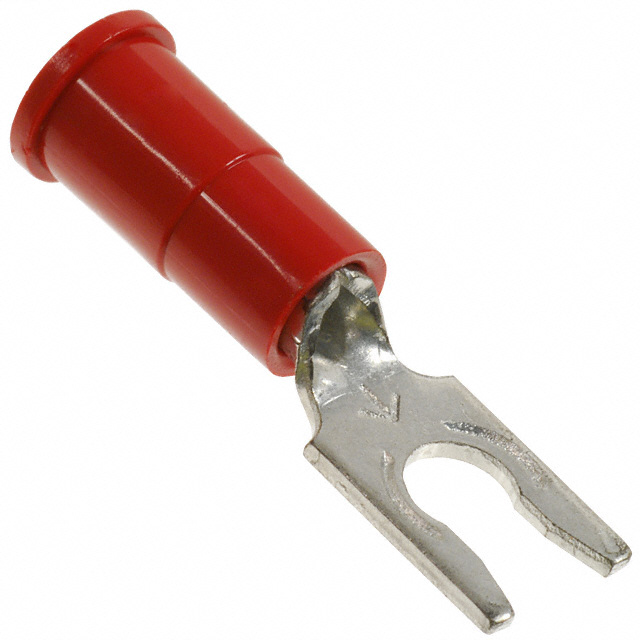

Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG
