SLA3.100

Active

PULS, LP

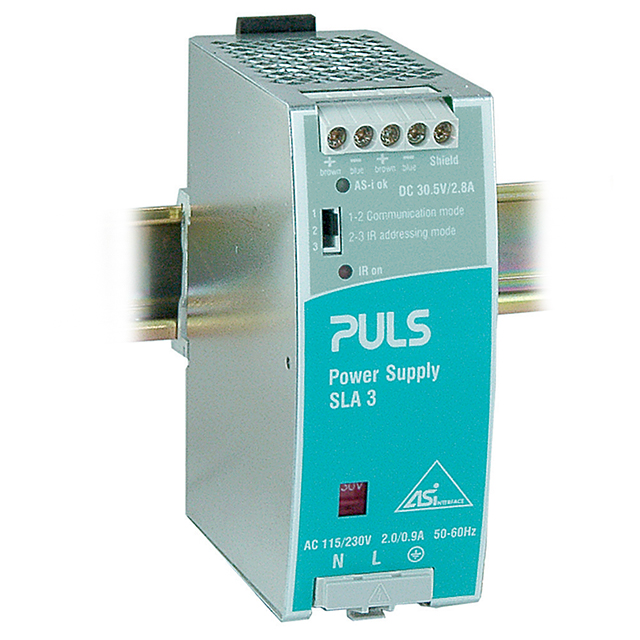

AC/DC DIN RAIL SUPPLY 30.6V 87W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 30.6V 87W

Technical Specifications

Parameters and characteristics for this part

AC/DC DIN RAIL SUPPLY 30.6V 87W

Part	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Power (Watts)	Applications	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Standard Number	Approval Agency	Efficiency	Voltage - Output 1	Current - Output (Max)	Input Type
PULS, LP SLA3.100	-25 °C	70 °C	132 VAC, 264 VAC	85 VAC, 184 VAC	87 W	ITE (Commercial)	IP20	124 mm	49 mm	102 mm	4.02 in	1.93 in	4.88 "	1	508, 60950-1, Class 2, Class I Div 2	ATEX, CSA, EAC, IEC, IECEx, NEC, UL	90.5 %	30.6 V	2.8 A	AC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 580.50

General part information

AC/DC DIN RAIL SUPPLY 30.6V 87W

Technical documentation and resources
