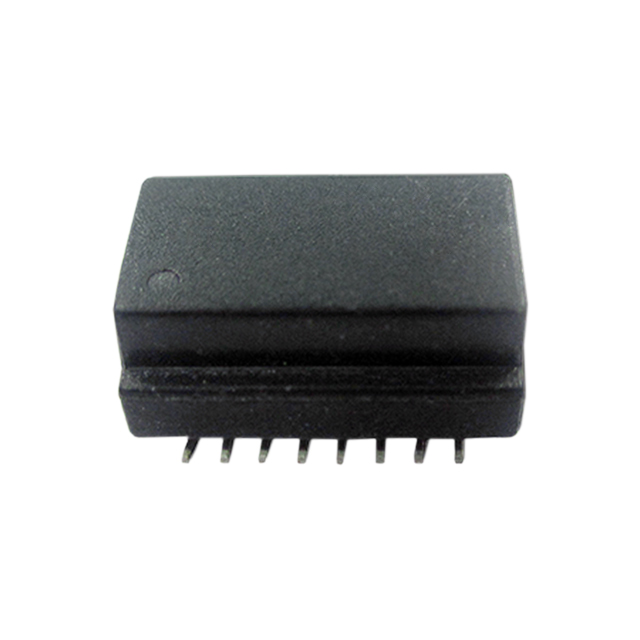

ALAN-2201
ActiveAbracon LLC
PULSE XFMR 1CT:1CT 350UH
ALAN-2201
ActiveAbracon LLC
PULSE XFMR 1CT:1CT 350UH
Description
General part information
ALAN-2201
350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ALAN-2201 |
|---|---|
| Height - Seated (Max) | 0.234 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.346 in |
| Transformer Type | LAN 10/100 Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
