83554 0021000

Active

Belden Inc.

CABLE 4COND 22AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 22AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83554 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.04 mm
Jacket (Insulation) Diameter [diameter]	0.159 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Number of Conductors	Wire Gauge	Voltage	Conductor Insulation	Cable Type	Length	Length	Jacket Color	Ratings	Shield Material	Usage	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 83554 0021000	Copper Tinned	0.356 mm	0.014 in	7	30 AWG	200 °C	-70 °C	Braid Foil	4	22 AWG	300 V	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor	1000 ft	304.8 m	Red	UL Style CMP	Aluminum Copper Tinned	Audio Control Instrumentation	85 % 100 %	Fluorinated Ethylene-Propylene (FEP) Plenum	4.04 mm	0.159 in
Belden Inc. 83554 002100	Copper Tinned	0.356 mm	0.014 in	7	30 AWG	200 °C	-70 °C	Braid Foil	4	22 AWG	300 V	Fluorinated Ethylene-Propylene (FEP)	Multi-Conductor			Red	UL Style CMP	Aluminum Copper Tinned	Audio Control Instrumentation	85 % 100 %	Fluorinated Ethylene-Propylene (FEP) Plenum	4.04 mm	0.159 in	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.84

General part information

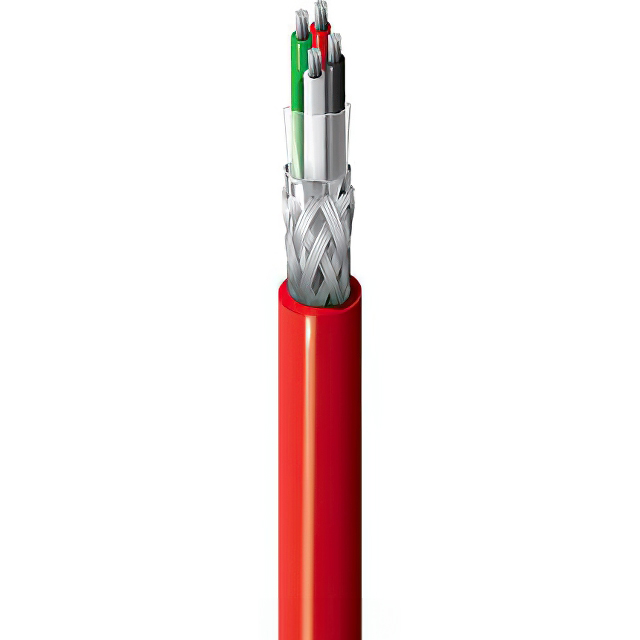

4 Conductor Multi-Conductor Cable Red 22 AWG Foil, Braid 1000.0' (304.8m)
