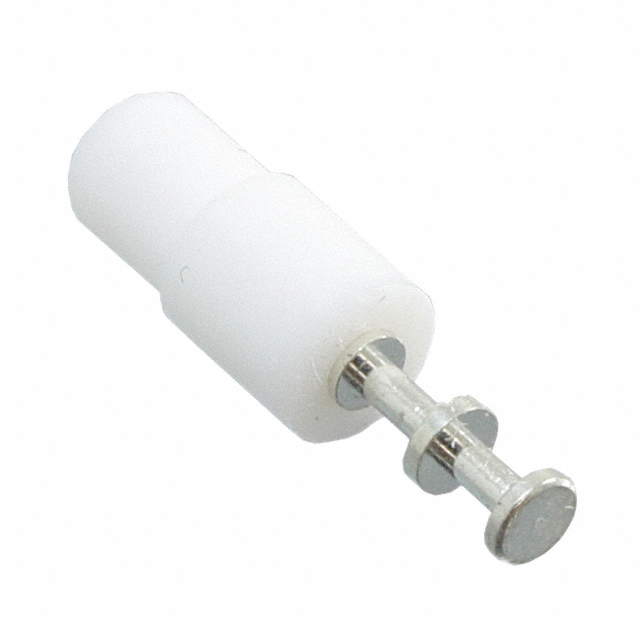

Specification	11308

Board Thickness	0.062 in
Contact Finish	Tin
Contact Material	Brass
Diameter - Turret Head	0.093 in
Flange Diameter	0.172 in
Insulation	Insulated
Insulation Color	White
Length - Above Board	0.437 in
Length - Below Flange	0.165 in
Length - Overall	0.602 in
Material - Insulation	PTFE, Polytetrafluoroethylene
Mounting Hole Diameter	0.136 in
Mounting Type	Through Hole
Number of Turrets	Double
Terminal Type	Single End
Termination	Press-Fit
