5-965906-1
ActiveTE Connectivity AMP Connectors

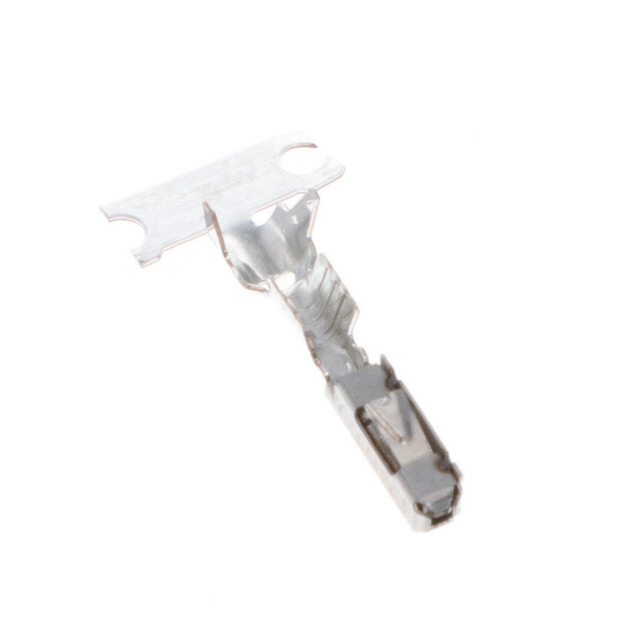

CONN SOCKET 20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-965906-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-965906-1 | 965906 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Silver, Gold |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge | 20 AWG | 20 AWG |
| Wire Gauge | - | 17.5 AWG |
| Wire Gauge | - | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.12 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.09 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 9000 | $ 0.07 | ||
| 18000 | $ 0.06 | |||
| 27000 | $ 0.05 | |||
| 63000 | $ 0.04 | |||
965906 Series
CONN SOCKET 20AWG CRIMP TIN
| Part | Type | Pin or Socket | Contact Finish | Contact Termination | Wire Gauge | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-965906-1 | Stamped | Socket | Tin | Crimp | 20 AWG | ||
TE Connectivity AMP Connectors 965906-6 | Socket | Silver | Crimp | 17.5 AWG | 20 AWG | ||
TE Connectivity AMP Connectors 965906-1 | Socket | Tin | Crimp | 17.5 AWG | 20 AWG | ||
TE Connectivity AMP Connectors 5-965906-5 | Stamped | Socket | Gold | Crimp | 20 AWG |
Description
General part information
965906 Series
Socket Contact Tin 20 AWG Crimp Stamped
