794610-1
ActiveTE Connectivity AMP Connectors

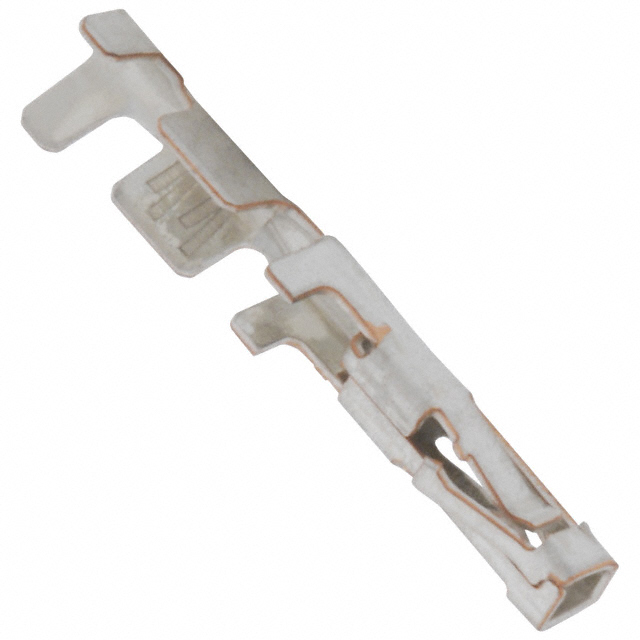

CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794610-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794610-1 | 794610 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 15 µin |
| Contact Finish Thickness | - | 0.38 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
794610 Series
CONN SOCKET 20-24AWG CRIMP TIN
| Part | Pin or Socket | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] | Contact Termination | Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794610-1 | Socket | Tin | 20 AWG | 24 AWG | Crimp | Stamped | ||
TE Connectivity AMP Connectors 1-794610-1 | Socket | Gold | 20 AWG | 24 AWG | Crimp | Stamped | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.11 | |
| 10 | $ 0.09 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
Description
General part information
794610 Series
Socket Contact Tin 20-24 AWG Crimp Stamped
