031-70009

AMPHENOL RF

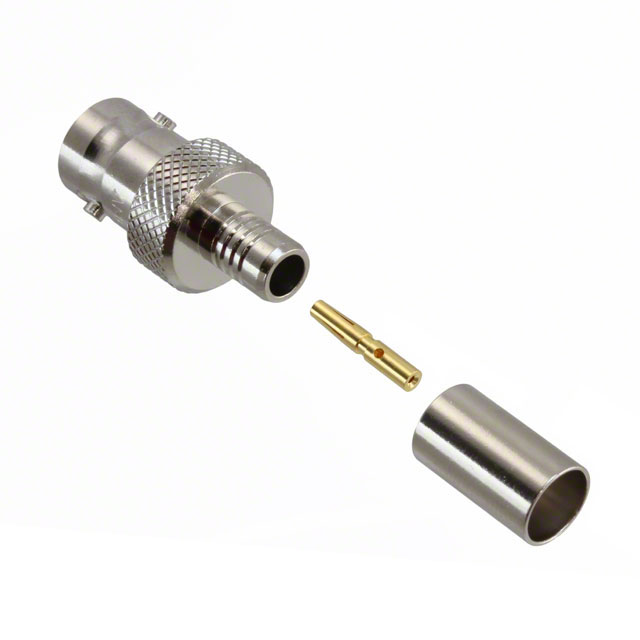

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-70009

AMPHENOL RF

CONN BNC JACK STR 75 OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-70009	031-70 Series

Adapter Series	-	HD to BNC, BNC, BNC to BNC, Dual
Adapter Type	-	Plug to Jack
Body Finish	Nickel	Nickel, Tin
Body Material	Brass	Brass, Phosphor Bronze, Zinc Die Cast
Cable Group	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209	140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209, Belden 4731P, Belden 4731R, Canare L-5.5CUHD, RG-6, Belden 4855R, 188, 188A, 316, LMR-100, M17/119-RG174, RG-174, AT&T 735, 735A, Belden 735A1, Times Fiber 210, Belden 1505A, AT&T 734, 734A, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B, Belden 4505P, 1694A, Belden 1694, 9248, AT&T KS19224-L2, Canare L-3.3CUHD, Belden 4505R, Belden 4794R, Belden 1794A, Belden 4694R, 4855R, Belden 1855A, 195, Belden 1855, 180B, 1865A, 180A, 180, RG-122
Center Contact Material	Brass	Brass, Beryllium Copper, Phosphor Bronze
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Connector Style	BNC	BNC, Mini, HD
Connector Type	Female Socket, Jack	Male Pin, Plug, Female Socket, Jack, Receptacle
Contact Termination	Crimp	Crimp, Solder, Solder Cup
Conversion Type	-	Between Series, Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket, BNC Plug, Male Pin
Convert To (Adapter End)	-	BNC HD Plug, Male Pin, BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polypropylene (PP)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Extended Insulation, Board Lock, Isolated
Frequency - Max [Max]	4 GHz	1 - 18 GHz
Housing Color	Silver	Silver, White
Impedance	75 Ohms	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector	1 Ferrule, 1 Contact, 1 Connector, 1 Nut, 1 Lockwasher, 1 Insulator, 1 End Cap, 1 Sleeve, 1 Spacer, 1 Gasket
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Insertion Loss	0.2 dB	0.1 - 0.2 dB
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle, Through Hole, Right Angle, Through Hole, Panel Mount, End Launch, Board Edge
Number of Ports	1	1 - 2
Operating Temperature [Max]	165 °C	75 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -10 ░C
Shield Termination	Crimp	Crimp, Solder
Style	-	Straight, T-Shape
Voltage Rating	500 V	500 V

031-70 Series

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT PLUG, CRIMP, 75 OHM

Part	Center Contact Plating	Fastening Type	Connector Style	Includes	Cable Group	Impedance	Voltage Rating	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Housing Color	Insertion Loss	Mounting Type	Contact Termination	Center Contact Material	Number of Ports	Body Material	Dielectric Material	Frequency - Max [Max]	Mating Cycles	Features	Mounting Feature
AMPHENOL RF 031-70008	Gold	Bayonet Lock	BNC	1 Connector, 1 Contact, 1 Ferrule	140, 210, 59B, 62, 8263, 8279, 9209, Belden 8241, RG-59	75 Ohms	500 V	Crimp	-65 ░C	165 °C	Male Pin, Plug	Nickel	Silver	0.2 dB	Free Hanging (In-Line)	Crimp	Brass	1	Brass	Polytetrafluoroethylene (PTFE)	4 GHz	500
AMPHENOL RF 031-70558-12G	Gold	Bayonet Lock	BNC	1 Connector, 1 Contact, 1 Ferrule		75 Ohms		Crimp	-30 ░C	85 °C	Male Pin, Plug	Nickel	Silver		Free Hanging (In-Line)	Crimp	Brass	1	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	12 GHz	500
AMPHENOL RF 031-70560-12G	Gold	Bayonet Lock	BNC	1 Connector, 1 Contact, 1 Ferrule	Belden 4731P, Belden 4731R	75 Ohms		Crimp	-30 ░C	85 °C	Male Pin, Plug	Nickel	Silver		Free Hanging (In-Line)	Crimp	Brass	1	Phosphor Bronze	Polytetrafluoroethylene (PTFE)	12 GHz	500
AMPHENOL RF 031-70552-12G	Gold	Bayonet Lock	BNC	1 Connector, 1 Contact, 1 Ferrule	Canare L-5.5CUHD	75 Ohms		Crimp	-30 ░C	85 °C	Male Pin, Plug	Nickel	Silver		Free Hanging (In-Line)	Crimp	Brass	1	Brass	Polytetrafluoroethylene (PTFE)	12 GHz	500
AMPHENOL RF 031-70556	Gold	Bayonet Lock	BNC		RG-6	75 Ohms		Crimp	-65 ░C	165 °C	Male Pin, Plug	Nickel	Silver		Free Hanging (In-Line), Right Angle	Crimp	Brass	1	Brass	Polytetrafluoroethylene (PTFE)	4 GHz	500
AMPHENOL RF 031-70544-12G	Gold	Bayonet Lock	BNC		Belden 4855R	75 Ohms		Crimp	-40 °C	85 °C	Male Pin, Plug	Nickel	Silver		Free Hanging (In-Line), Right Angle	Crimp	Brass	1	Brass	Polytetrafluoroethylene (PTFE)	18 GHz	500
AMPHENOL RF 031-70265	Gold	Bayonet Lock	BNC, Mini			75 Ohms		Solder	-65 ░C	165 °C	Female Socket, Jack	Nickel	Silver	0.1 dB	Through Hole, Right Angle	Solder	Beryllium Copper	1	Brass	Polytetrafluoroethylene (PTFE)	1 GHz	500
AMPHENOL RF 031-70018	Gold	Bayonet Lock	BNC	1 Connector, 1 Lockwasher, 1 Nut		75 Ohms	500 V	Solder	-65 ░C	165 °C	Female Socket, Jack	Nickel	Silver	0.2 dB		Solder Cup	Beryllium Copper	1	Brass	Polytetrafluoroethylene (PTFE)	4 GHz	500	Extended Insulation	Bulkhead - Rear Side Nut
AMPHENOL RF 031-70331	Gold	Bayonet Lock	BNC, Mini	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	188, 188A, 316, LMR-100, M17/119-RG174, RG-174	75 Ohms		Crimp	-40 °C	155 °C	Female Socket, Jack	Nickel	Silver	0.1 dB	Free Hanging (In-Line)	Solder	Beryllium Copper	1	Brass	Polytetrafluoroethylene (PTFE)	1 GHz	500
AMPHENOL RF 031-70013-1000	Gold	Bayonet Lock	BNC	1 Connector, 1 Contact, 1 Ferrule	735A, AT&T 735, Belden 735A1	75 Ohms	500 V	Crimp	-65 ░C	165 °C	Male Pin, Plug	Nickel	Silver	0.2 dB	Free Hanging (In-Line)	Crimp, Solder	Brass	1	Brass	Polytetrafluoroethylene (PTFE)	4 GHz	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 54.06

Description

General part information

031-70 Series

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
