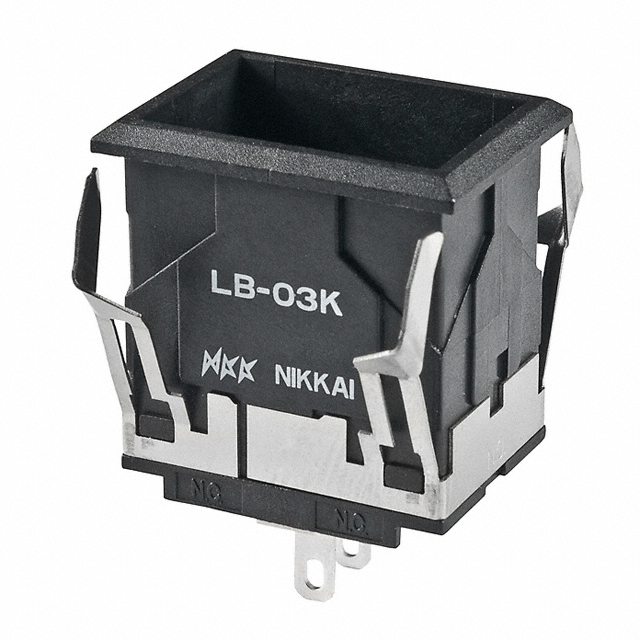

Specification	LB03KW01

Lens Length	19.4 mm
Lens Style	Rectangle, Flat Top
Lens Width	13.2 mm
Panel Cutout Length	0.88 "
Panel Cutout Shape	Rectangle
Panel Cutout Width	0.64 "
Quick Connect Size (0.110")	0.11 in
Termination Style	Quick Connect

LB03 Series

Part	Quick Connect Size (0.110")	Termination Style	Type	Current	Panel Cutout Length	Panel Cutout Width	Lens Style	Lens Length	Lens Width	Lamp Color	Lens Color	Panel Cutout Shape	Ratings	Voltage	Lens Transparency
NKK Switches LB03KW01-5F24-JF	0.11 in	Quick Connect	LED	13 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Green	Green	Rectangle	DC	24 V	Diffused
NKK Switches LB03KW01-5F12-JF	0.11 in	Quick Connect	LED	26 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Green	Green	Rectangle	AC	12 VDC	Clear
NKK Switches LB03KW01-01-JE	0.11 in	Quick Connect	Neon	1.5 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Yellow	Yellow	Rectangle	If (Max) Vf (Typ)	110 V	Diffused
NKK Switches LB03KW01-12-CJ	0.11 in	Quick Connect	Incandescent	60 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Red	Red	Rectangle	AC	12 VDC	Clear
NKK Switches LB03KW01-5C-JC	0.11 in	Quick Connect	LED	30 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Red	Red	Rectangle	If (Max) Vf (Typ)	1.9 V	Diffused
NKK Switches LB03KW01-12-JC	0.11 in	Quick Connect	Incandescent	60 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Red	Red	Rectangle	If (Max) Vf (Typ)	12 VDC	Diffused
NKK Switches LB03KW01-5D12-JB	0.11 in	Quick Connect	LED	26 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Amber	Amber	Rectangle	DC	12 VDC	Diffused
NKK Switches LB03KW01-05-JC	0.11 in	Quick Connect	Incandescent	115 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Red	Red	Rectangle	If (Max) Vf (Typ)	5 VDC	Diffused
NKK Switches LB03KW01-12-BJ	0.11 in	Quick Connect	Incandescent	60 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	White	White	Rectangle	If (Max) Vf (Typ)	12 VDC	Diffused
NKK Switches LB03KW01-5C05-JC	0.11 in	Quick Connect	LED	52 mA	0.88 "	0.64 "	Flat Top Rectangle	19.4 mm	13.2 mm	Red	Red	Rectangle	AC	5 VDC	Clear
