PI3USB31534ZTFEX
ObsoleteUSB 3.2 GEN 2/HDMI2.0 CROSSBAR SWITCH FOR TYPE-C
Deep-Dive with AI
Search across all available documentation for this part.
PI3USB31534ZTFEX
ObsoleteUSB 3.2 GEN 2/HDMI2.0 CROSSBAR SWITCH FOR TYPE-C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI3USB31534ZTFEX |
|---|---|
| Applications | Video, USB |
| Features | HDMI 2.0, USB 3.1 |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 6, 4 |
| Number of Channels | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

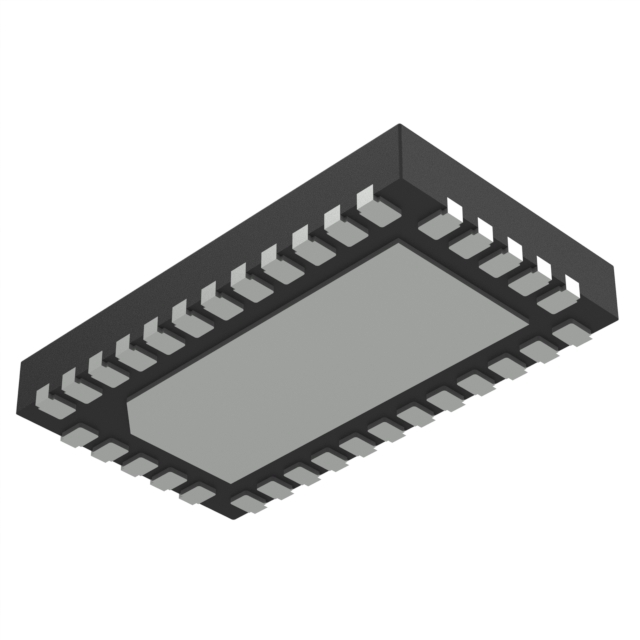

| Package / Case | 34-UFQFN Exposed Pad |
| Supplier Device Package | 34-UTQFN (2.5x4.5) |
| Voltage - Supply, Single (V+) [Max] | 3.6 V |
| Voltage - Supply, Single (V+) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PI3USB31534 Series
The PI3USB31534 is a 6:4 differential channel bi-directional Crossbar switch solution for switching USB3.1 Gen1/Gen2 and HDMI signals through USB3.0 Type-C connector. It multiplexes either 1 lane of USB3.1 Gen1/Gen2 or 4 channels HDMI to the USB Type-C connector. In addition, HEAC+/HEAC- channels are also multiplexed to the Type-C connector. PI3USB31534 offers excellent signal integrity for high-speed signals and low power dissipation. Insertion loss is -2.2dB and return loss is -15dB at 10Gb/s speed of USB3.1.
