82489 8771000

Active

Belden Inc.

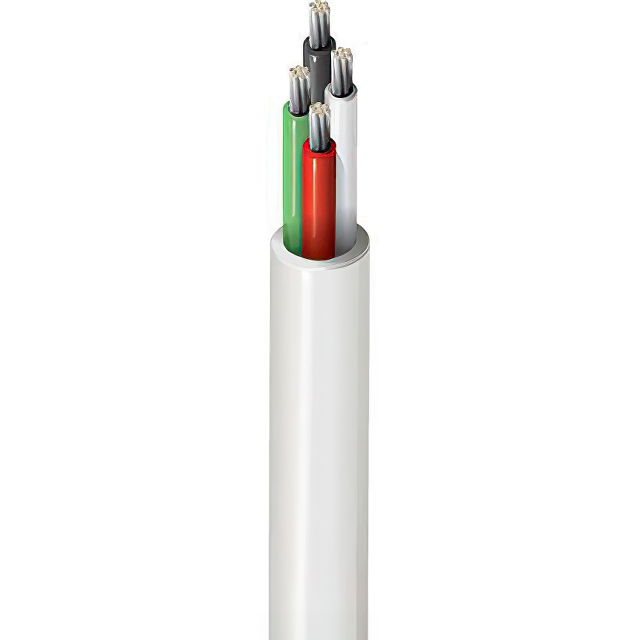

CABLE 4COND 18AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 18AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	82489 8771000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	4.22 mm
Jacket (Insulation) Diameter [diameter]	0.166 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Usage	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Jacket Color	Conductor Material
Belden Inc. 82489 8771000	Audio Control Instrumentation	300 V	75 ░C	0 °C	Multi-Conductor	0.356 mm	0.014 in	Fluorinated Ethylene-Propylene (FEP)	19	30 AWG	1000 ft	304.8 m	18 AWG	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	4.22 mm	0.166 in	4	Natural	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Natural 18 AWG 1000.0' (304.8m)
