770988-3
ActiveTE Connectivity AMP Connectors

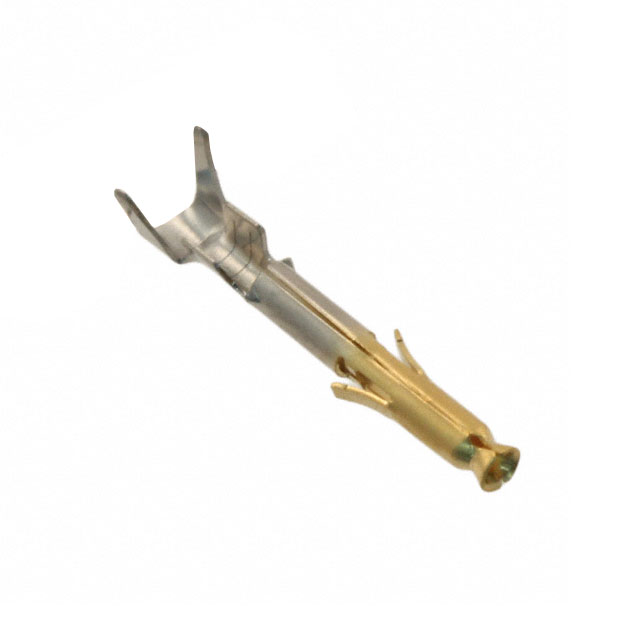

CONN SOCKET 18-22AWG GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770988-3
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770988-3 | 770988 Series |
|---|---|---|
| Contact Finish | Gold | Tin, Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Brass | Brass |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
770988 Series
CONN SOCKET 18-22AWG TIN CRIMP
| Part | Type | Contact Termination | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 770988-1 | Stamped | Crimp | Socket | 22 AWG | 17.5 AWG | Brass | Tin | ||
TE Connectivity AMP Connectors 770988-3 | Stamped | Crimp | Socket | 22 AWG | 17.5 AWG | Brass | Gold | 0.76 Ám | 30 Áin |
TE Connectivity AMP Connectors 1-770988-0 | Stamped | Crimp | Socket | 22 AWG | 17.5 AWG | Brass | Gold | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.69 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.45 | |||
| 2500 | $ 0.43 | |||
Description
General part information
770988 Series
Socket Contact Gold Crimp 18-22 AWG Stamped
